Product Details:

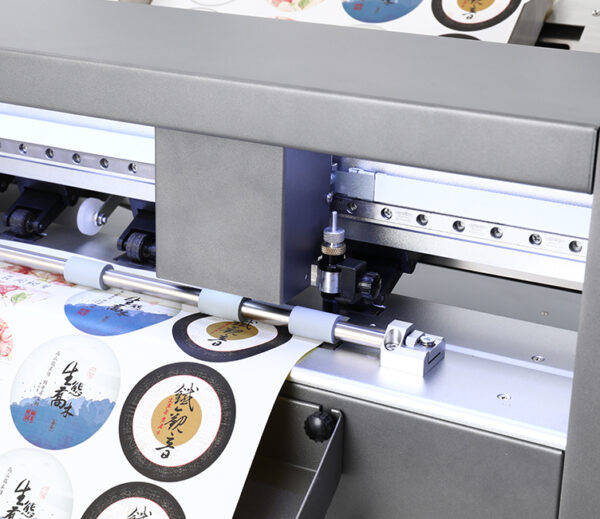

Presenting the Sunfung SF-350P Sheet Cutter, a sophisticated and efficient cutting solution tailored to the labelling industry. Boasting a professionally designed user interface, the SF-350P ensures a seamless and user friendly experience. Its well-lit icons are easily comprehensible, and navigation control is effortlessly adjustable, with an oversized U-disk button for quick production commencement. The SF-350P ‘s automatic feeding system enables unattended operation, allowing stickers to be printed edge-to-edge on the media, even outside registration marks. This maximises paper usage, leading to cost savings for your business. The carriage, a critical component, is crafted from top-quality materials to withstand daily wear and tear. Sunfung engineers have addressed heat build-up issues commonly found in other carriage designs.

Main Feature:

  • CDR orAI file cutting available
  • Auto feeding with hopper capacity up to 200 sheets or 18mm thick
  • 4.3 inch Touch screen for easy operations
  • Servo Motor for fast and accurate control
  • 4 interfaces include U disk, USB, LAN network, WIFI
  • Quiet label cutting with fast speed to 1500mm/s
  • 10-500g adjustable downforce, to cut 1mm thick max
  • CCD Camera for automatic contour cut
  • QR code available
  • Linear guide guarantee high cut accuracy and durable use

Technical Parameters

ModelSF-350P
Max sheet size(mm)350×750
Position modeCCD Camera
Downforce(g)10-500
QR codeYES
SoftwareCorelDRAW & Adobe illustrator, Cutmaster
Max cutting speed(mm/s)1500
Hopper capacity200 sheets/ 18mm
Display5.1 inch Touch screen
Computer systemWindows
DriverHigh-speed servo motor
Mechanical resolution(mm)0.01254
Repetition accuracy(mm)+/-0.01
InterfacesU disk, USB, LAN, WIFI
Gross weight(kg)40
Package dimensions(mm)865×550×410
Power supplyAC100-240V / 50Hz-60Hz
Environment5℃-35℃, up to 70% humidity
Options/
