The SF-10 & SF-20E Automatic Creaser is an ideal tabletop creaser for the digital printing and photo album making industry. With creasing, perforating available, it handles coated paper, laminated paper, offset paper, etc. The 3-in-1 machine simply discards the probability of commonly occurring issue of cracking of digitally-printed products. The sheets with fine crease lines can easily pass through paper copiers and printers. This high-performance creaser machines eliminates mundane tasks, thereby emerging as an asset for office and semi-industrial applications.

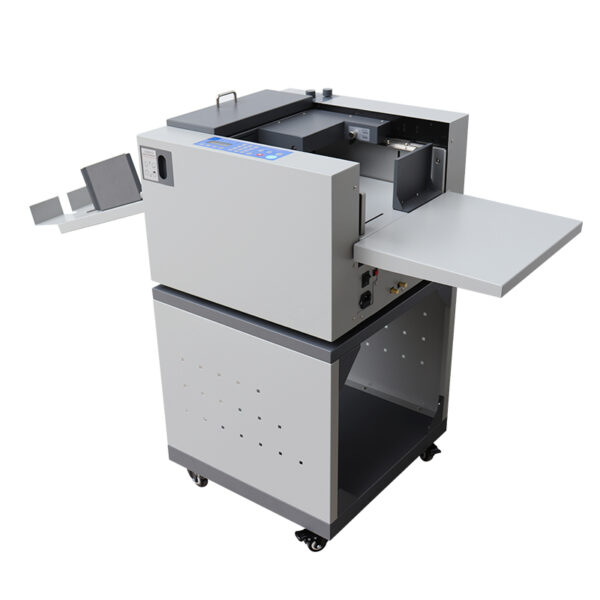

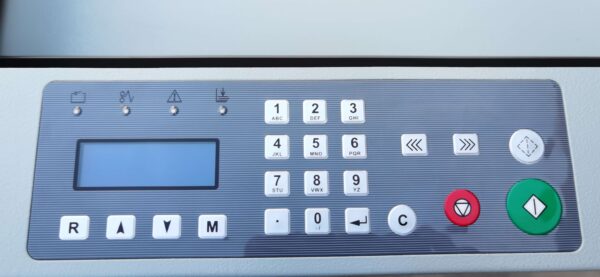

The SF-20E auto creaser is a versatile automatic creaser with multiple finishing options; perforating, scoring, creasing. Equipped with a 90mm vacuum pile feeder, an easy to use LCD screen and keyboard, skew compensation, and sheet size up to 320 x 660mm. With a maximum of 32 crease/perf positions per sheet, 30 job memory, and speeds up to 3,000 sph, the SF-20E auto creaser is a capable and affordable finishing option.
| Model | SF-10 | SF-20E |
|---|---|---|
| Working accuracy | ±0.2mm | ±0.2mm |
| Creasing times in each paper | 0-32 times | 0-32 times |
| Paper thickness | 60-400 g/m²(creasing), 60-400 g/m²(perforating) 60-400 g/m²(creasing), 60-400 g/m²(perforating) | 60-400 g/m²(creasing), 60-400 g/m²(perforating) 60-400 g/m²(creasing), 60-400 g/m²(perforating) |
| Weight | 50kg | 70kg |
| Paper size | 50*90mm(Min), 340*900mm(Max) | 150*210mm(Min), 320*660mm(Max) |
| Voltage | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Power | 160w | 200w |
| Size(mm) | 1190*505*405(Machine), 610*600*500(Package) | 1640*560*400(Machine), 760*680*530(Package) |
| Working speed | 3000 pages/h (one crease on each A4 paper) | 3000 pages/h (one crease on each A4 paper) |
| Paper type | Chrome, laminated, UV coated, etc | Chrome, laminated, UV coated, etc |
