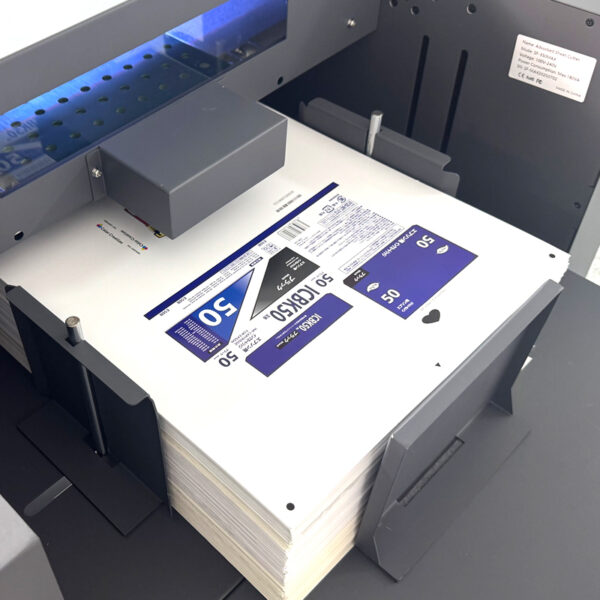

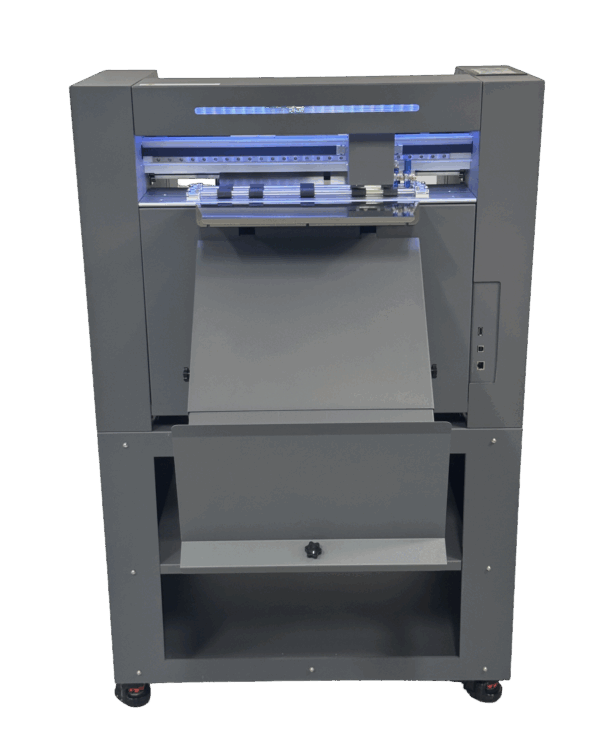

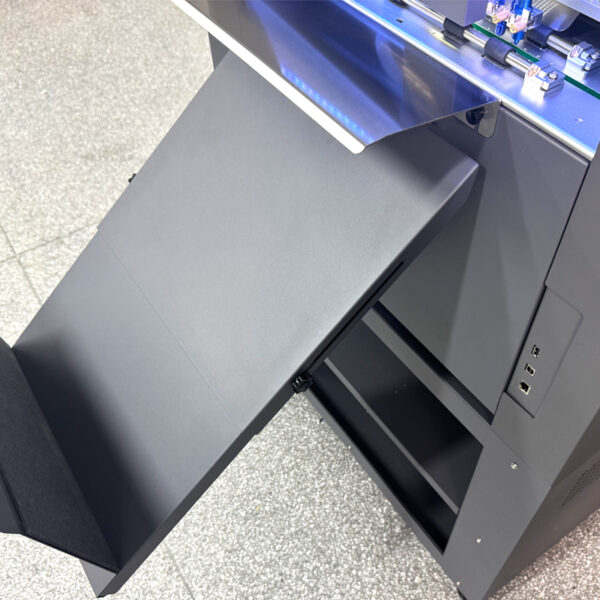

Presenting the Sunfung SF-350MAX/530MAX Sheet Cutter, a high-performance cutting solution tailored for the labelling industry, where speed and precision take center stage. At its core, the SF-350MAX/530MAX features a suction-type paper feeding system, paired with a larger capacity paper bin and anti-static material design. This innovative setup
effectively eliminates double-sheet feeding issues, ensuring a smooth, uninterrupted workflow that sets it apart from conventional models. Powered by a brand-new AC servo motor and a high-precision servo system, the machine delivers a maximum cutting speed of 1800mm/s—a significant leap in operational efficiency that drastically reduces production time. Complemented by automatic paper feeding, automatic CCD positioning scanning, and cutting, as well as a robust double row platen for secure material fixation, the SF-350MAX/530MAX ensures every cut is precise and consistent. With a maximum cutting force of 1000 gf, this machine is engineered to handle the most demanding tasks with ease, making it the ideal choice for businesses looking to maximize productivity and stay ahead in a fast-paced industry.
| Model | SF-350MAX | SF-530MAX |
|---|---|---|
| Ways to fix material | Double row platen | Double row platen |
| Maximum cutting speed | 1800mm/s | 1800mm/s |
| Maximum cut | 1000 gf | 1000 gf |
| Effective cutting area | 350x600mm | 530*740mm |
| Positioning method | CCD camera positioning | CCD camera positioning |
| Applicable to material rulerinch | A4, A3, A3+ | A4, A3, A3+,B4, B3,B2 |
| Machine Precision | 0.005 mm (5µm) | 0.005 mm (5µm) |
| Programming Resolution | HP-GL: 0.025mmV | HP-GL: 0.025mmV |
| Repeatability | 0.1mm | 0.1mm |
| Machine input interface | USB2.0 (Full Speed) / U disk (offline) / network cable/Wifi | USB2.0 (Full Speed) / U disk (offline) / network cable/Wifi |
| Motherboard Memory | 256MB | 256MB |
| Command language | HP-GL | HP-GL |
| Number of tools | Single head | Single head |

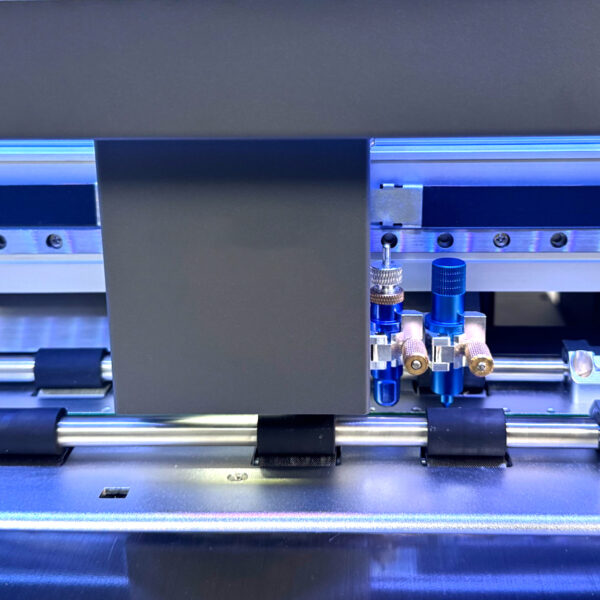

| Tool Type | Cutting tools, indentation knives | Cutting tools, indentation knives |

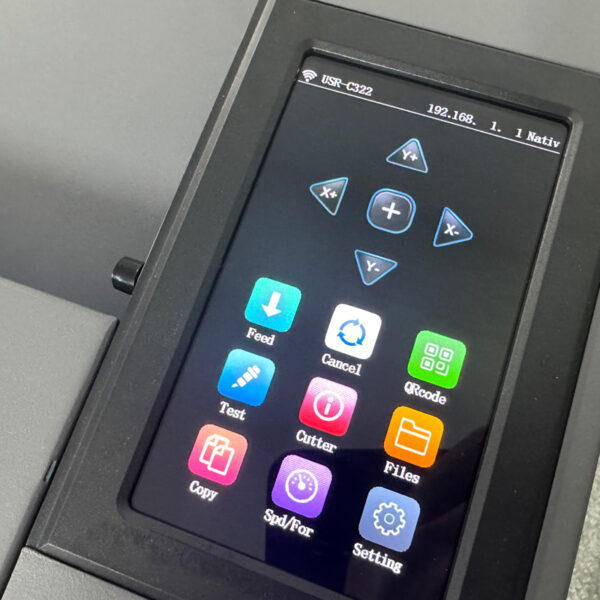

| Control Panel | 5.1 inch LCD touch screen | 5.1 inch LCD touch screen |
| Power | 100 to 240 V AC, 50/60 Hz (auto switching) | 100 to 240 V AC, 50/60 Hz (auto switching) |
| Power | Max. 200VA (machine) | Max. 200VA (machine) |
| machine operating environment | Ambient temperature: 10 to 35 degrees C (35 to 95 degrees F) | Ambient temperature: 10 to 35 degrees C (35 to 95 degrees F) |
| Humidity | 35 to 75% RH (non-condensing) | 35 to 75% RH (non-condensing) |
| Land size | 775x600x1205mm | 900x700x1205mm |
| Package size | 750x680x1020mm | 800x780x1200mm |
| Gross / Net weight | 150kg / 130kg | 180kg / 150kg |
| Compatible operating systems and software | Windows, support CDR, AI plug-in mode | Windows, support CDR, AI plug-in mode |
