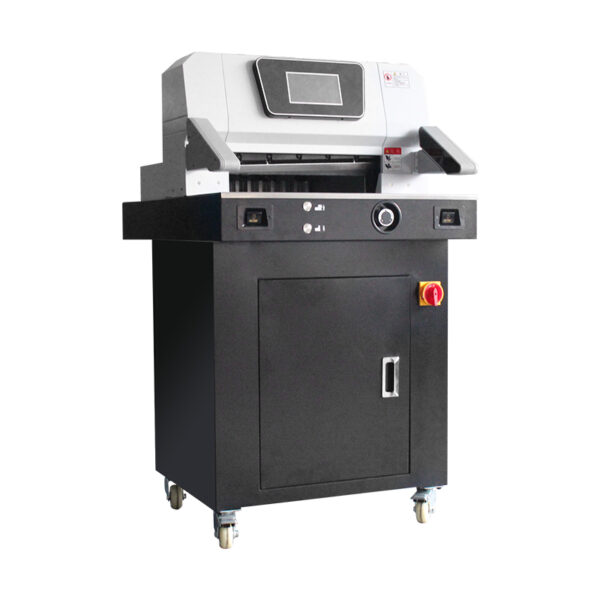

SF-460E/500E Paper Cutter

分类 标签

Product Details:

Sunfung offers high-quality electric Paper Cutter that are durable and precise. Paper Cutters can be used in quick print, copy shop, office, or on-demand market. Even for low volume cutting environments like offices.

SF-460E / 500E automatic paper cutter offers precision cutting for paper stacks up to 80mm, 500mm width max, IR safety beam guard, electric clamp, and electric back gauge control. It has a 0.3mm cutting accuracy with quiet operations.

The full swing technology guarantees a smoother cutting cycle and a more accurate cutting cycle with an exact cutting depth every blade movement completely in dependable of the blade speed. Direct drive gear paper clamp for a equal pressure of the clamp left and right, no matter what you are cutting: a pile of A-3 or just a business card.

Main Feature:

  • 7 -inch industrial-grade intelligent touch screen, built-in multiple operation modes, shortcut mode, one-key switch, more convenient operation
  • Adopt an integrated casting gantry frame to ensure cutting accuracy and long-term use without deformation
  • The power adopts DC motor design, with constant power output, and the cutting force is more than twice that of AC motor

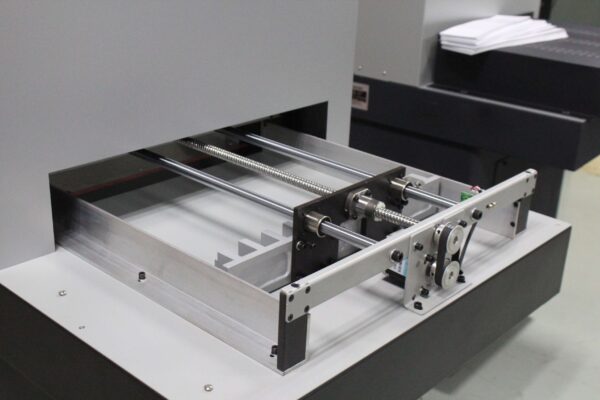

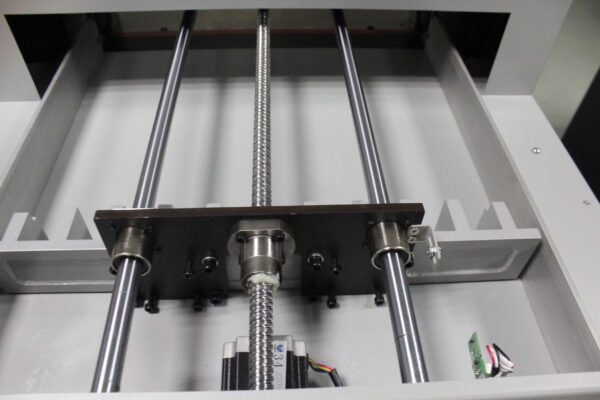

  • The paper pushing system adopts a ball screw + double guide rails mechanism and the paper pushing accuracy is 0.2mm
  • Using suspended infrared grating protection, sensitivity 0.02S, running current circuit protection higher security

Technical Parameters

ModelSF-490ESF-500E
MAX Cutting Size460*460mm500*500mm
MIN Cutting Size25mm25mm
MAX Cutting thickness80mm80mm
Cutting Accuracy±0.3mm±0.3mm
Paper Press Modeprogram controlprogram control
Paper Cutting ModeDC motorDC motor
Paper Pushing ModeProgram controlProgram control
Display7 -inch touch screen7 -inch touch screen
Infrared Light ProtectionYesYes
Using Power/Total Power700W800W
Power Supply220V/16A220V/16A
Machine Size1300*740*930mm1300*790*990mm
Net weight/Gross weight150KG/210KG192KG/241KG
