SF-52P/67P/72P Paper Cutter

分类 标签

Product Details:

Our Hydraulic and Programmable paper cutters are the most powerful to precisely cut large stacks of paper stock. SF-P series of hydraulic and programmable paper cutter is the perfect cutter for print finishing and on-demand use. Our hydraulic and programmable cutters are available in fully-automatic models.

The P series paper cutter handles paper up to 720mm wide, making it perfect for the on-demand printing market. User friendly features include a touchscreen control panel, anti-friction surface, and the ability to program and store up to 100 jobs. Cutting accuracy is 0.3mm on paper stacks up to 80mm. The bright LED cutting line shows operators exactly where the blade will cut which allows for fine adjustments beforehand. Its compact footprint gives you a heavy-duty machine at half the size of other manufacturer’s cutters.

We design our cutting machines so that they are user friendly and easy to operate, thanks to features such as LED display touchscreen with full status and side buttons for easy two-handed operation. Equipped with state of the art security features including CE standard safety beam guards, our cutters are designed to be safe.

We have an awesome selection with choices in virtually every price range. But we do not compromise on quality! Our paper cutters are designed to last for years of print shop duty cutting – up to 18,000 cuttings after sharpening!

Main Feature:

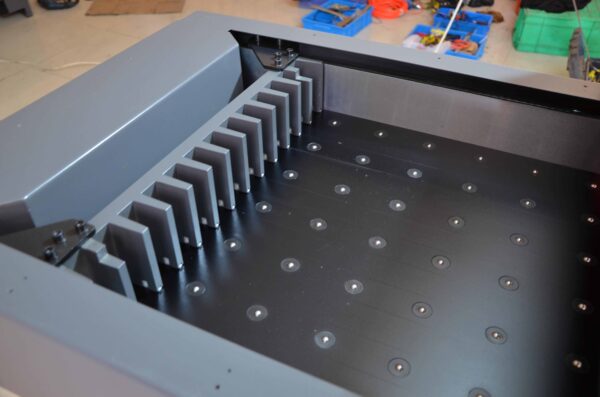

  • Aviation aluminum sheet table with hard oxidation treatment
  • PC board with mechanical safety relay
  • Clamp pressure from 2,000—20,000 N adjustable
  • 100 programs with 30 steps each

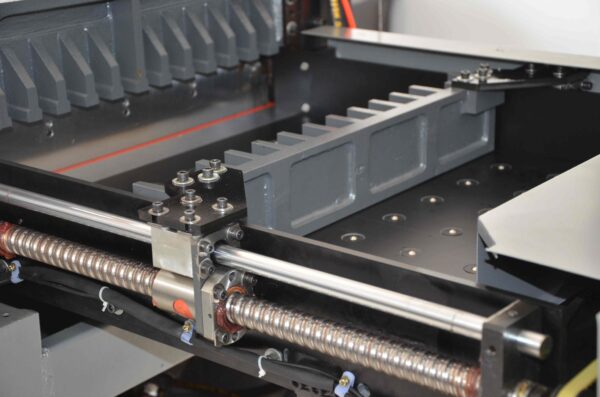

  • 10-inch touchscreen full-color display Double guide back gauge
  • 2021 updated control panel software
  • Compact design
  • Efficient foot pedal

Technical Parameters

ModelSF-52PSF-67PSF-72P
Max cut width520 mm670 mm720 mm
Min cut length30 mm30 mm30 mm
Max cut height80mm80 mm80mm
Cut accuracy0.2 mm0.2 mm0.2 mm
Paper clampHydraulic + Foot pedalHydraulic + Foot pedalHydraulic + Foot pedal
Backgauge controlProgrammableProgrammableProgrammable
Display10.1 inch touch screen10.1 inch touch screen10.1 inch touch screen
Safety mechanismBlade lock + CE safety beam guardBlade lock + CE safety beam guardBlade lock + CE safety beam guard
Power supply220V, 50Hz/ 110V, 60Hz220V, 50Hz/ 110V, 60Hz220V, 50Hz/ 110V, 60Hz
DimensionsW 1250 x D 1010 x H 1390 mmW 1400 x D 1010 x H 1390 mmW 1450 x D 1010 x H 1390 mm
Net weight350 Kg410 Kg460 Kg
Gross weight430 Kg490 Kg540 Kg
