Sunfung SF-340PRO Perfect Binder Introduction

The Sunfung SF-340PRO series redefines the benchmark for modern on-demand perfect binding. It delivers premium-quality book binding with fully automatic setup functions at a cost-effective price, setting a new industry standard for desktop binding equipment.

The SF-340PRO features full automatic self-adjustment. Both the pneumatic clamp and nipper operate with automatic calibration, and a built-in silent compressor comes as standard. Operators can switch between binding ultra-thin documents and thick books instantly, with zero manual adjustments required. The machine supports binding thickness ranging from just two sheets of paper up to 6cm.

Fitted with heavy-duty custom roughing blades, this binder effortlessly processes diverse paper materials, including offset paper, coated stock, and paper printed with oil-based or wax-based inks, delivering stable and reliable binding results.

Equipped with twin glue rollers plus an auxiliary metering roller, the equipment ensures uniform, smooth glue distribution across book spines. An independent side glue tank is specially designed for cover hinge bonding, enabling the production of neat, square-backed books and notepads.

This high-efficiency binding machine achieves a maximum output of 400 books per hour. It inherits all core functional advantages of professional binding devices, while integrating multiple upgraded configurations. Standard accessories include an automatic creasing cover feeder, paired with either a vertical book stacker or output delivery conveyor. It also comes with a vacuum waste removal system, which matches heavy-duty notching pins to optimise spine grooving and strengthen glue adhesion.

Adaptable for all batch sizes, from single custom jobs and small batches of 500 units to large-scale orders of 5000 units, the SF-340PRO delivers exceptional usability. It eliminates jams and manual setup work entirely, achieving true one-touch automatic perfect binding for diverse production needs.

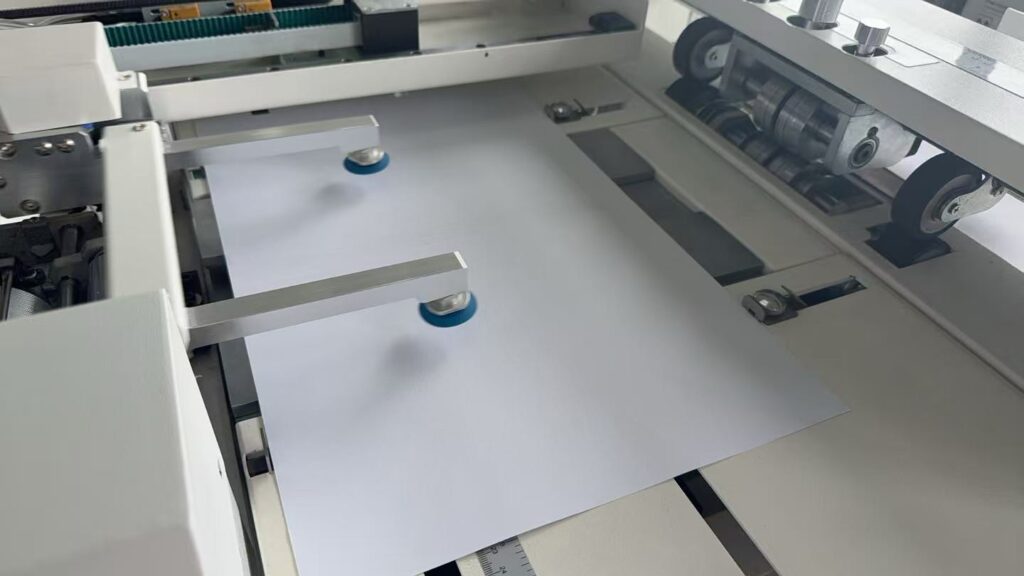

Cover Feeder

The automatic cover feeder includes an automatic creasing unit that can put up to four creases on the cover

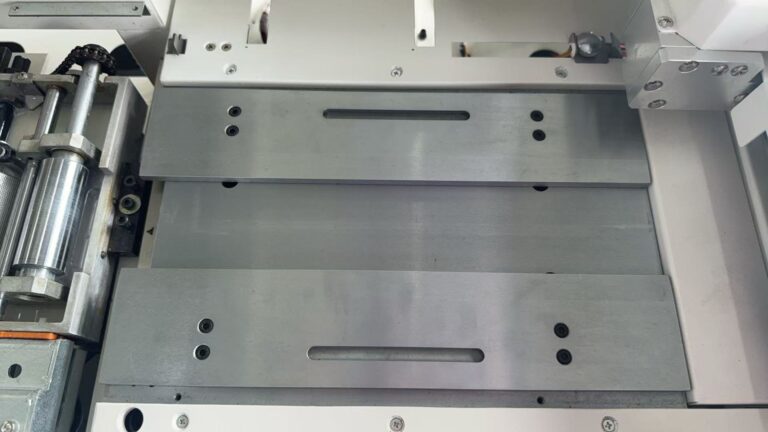

Auto Clamp

The clamp adjusts automatically between two sheets and 6 cm. Both the clamp and nipper are motor control.

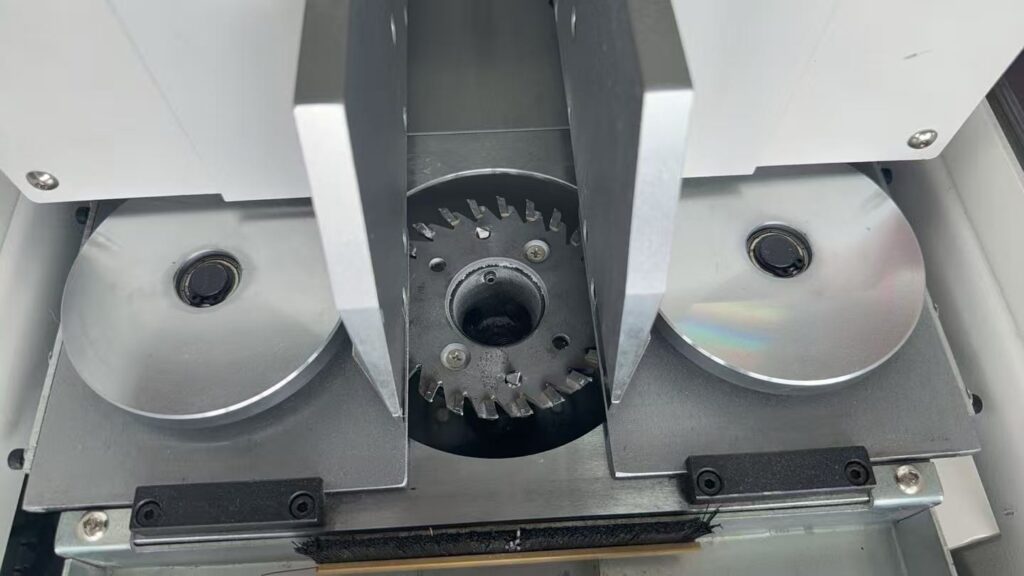

Roughing Blade

The roughing blade has a serrated edge which holds up to one notching pin. This allows for maximum glue penetration.

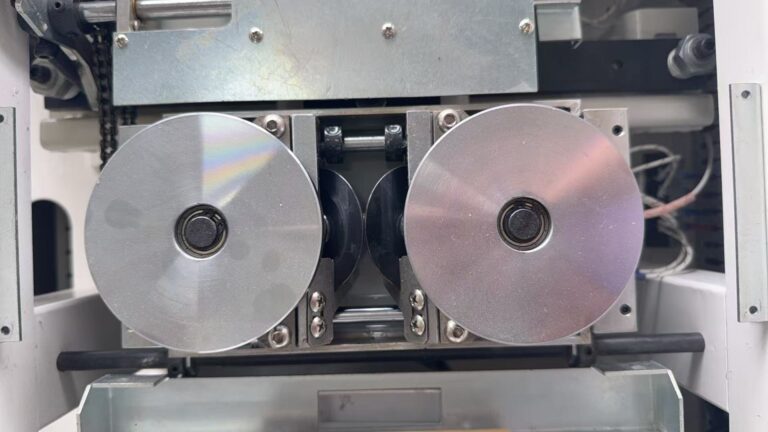

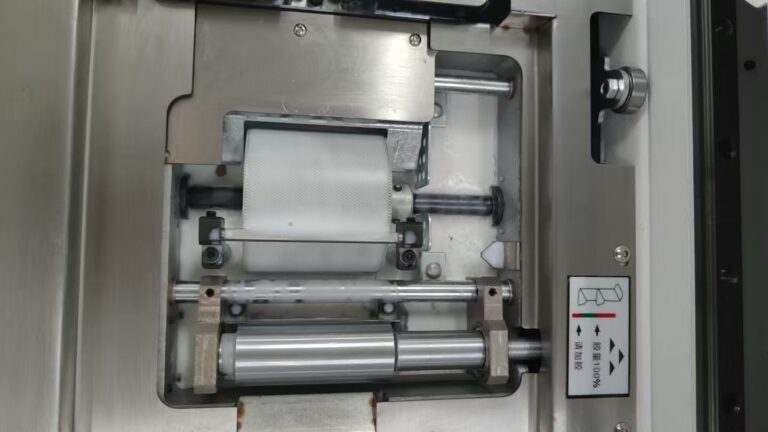

Two Glue Rollers

Two glue rollers saturate the spine with glue. Metering roller smooths out the glue to the desired thickness

Side Gluing

The SF-340Pro binder sports a separate side glue pot. This ensures a perfect line of side glue everytime.

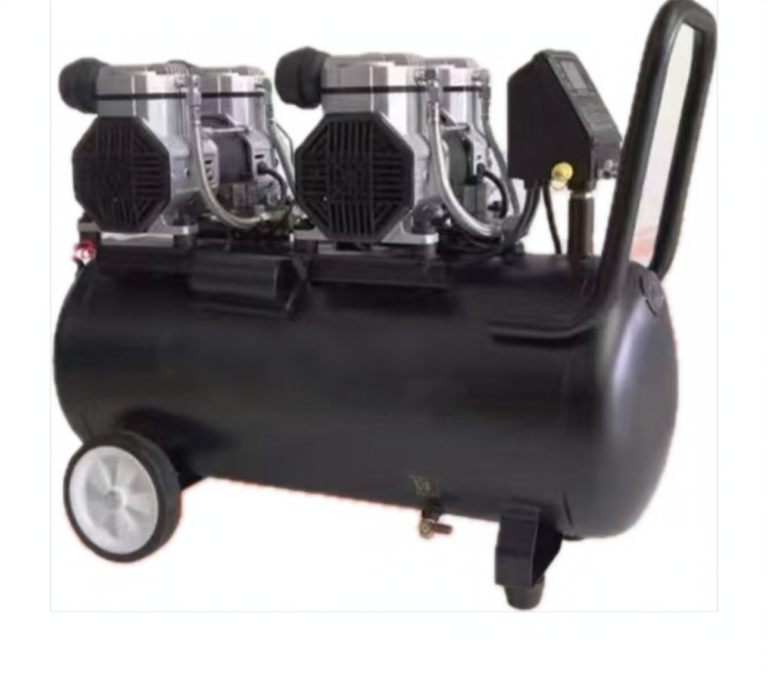

Compressor

A silent compressor is included with the SF-340Pro book binder

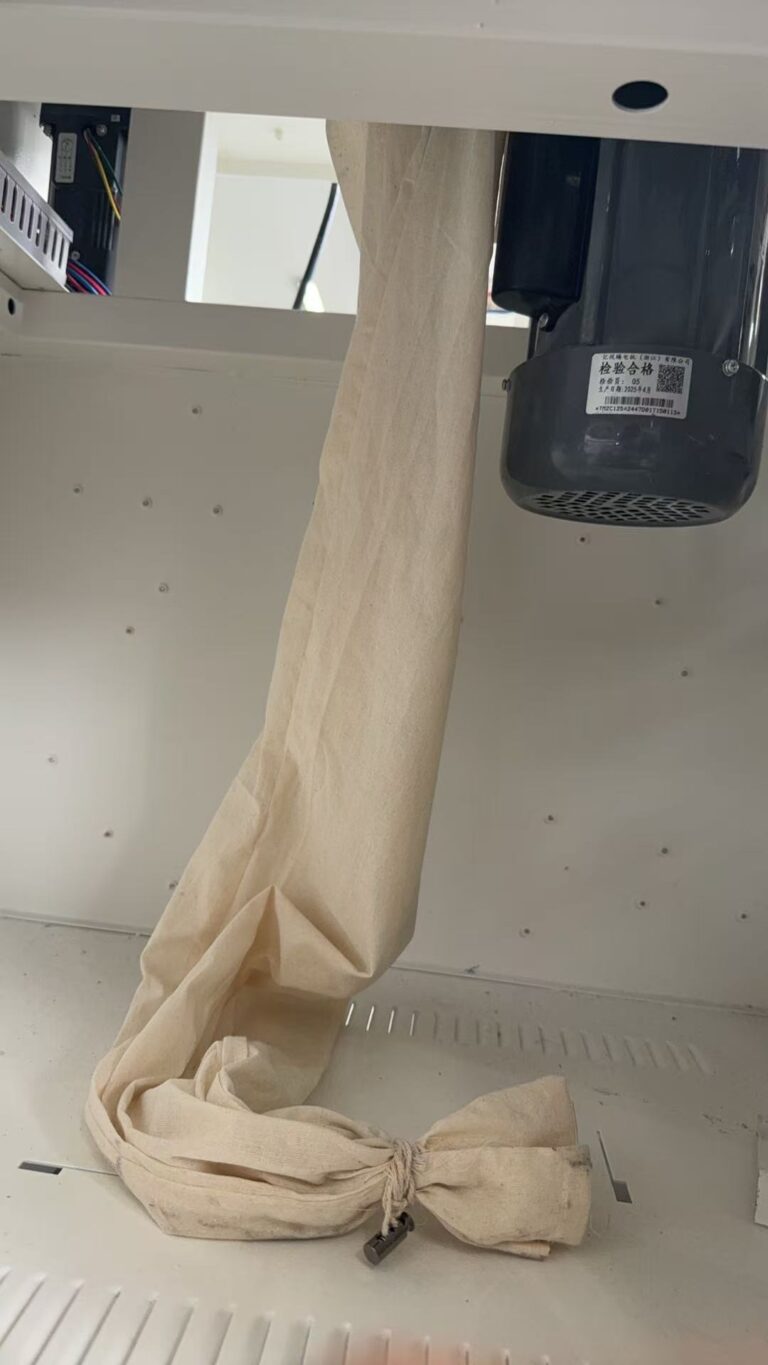

Waste Removal

The SF-340Pro book binder includes a vacuum waste removal system. This facilitates deeper roughing and notching, increasing book strength.

Main Features

  • Up to 400 books per hour
  • Touch screen operation with automatic set up
  • Binding length (spine) from 110mm up to 380mm
  • Spine thickness from 2mm to 60mm
  • Adjustable spine preparation by sophisticated milling and notching device
  • Paper chip extractor
  • Patented hermetically EVAapplication system for a spine and side gluing with automatic glue cut-off
  • Automatic cleaning and sealing of the glue head
  • Auto cover feeding with creasing feature.

Technical Parameters

ModelSF-340PRO
Display10-inch touch screen
Book binding length70-340 mm
Book binding thickness0.1-60mm
Glue melting time≤45 mins
Book binding speed300-400 books/hour
Milling cutter24-tooth high speed disk milling cutter
Glue rollerbase glue wheel+side gule wheel+gule roller
Book cover weight120-300g
Max.book cover size600(L)*340(W) mm
Power220V/3200W
Machine size2180*850*1200 mm
Machine weight400KG

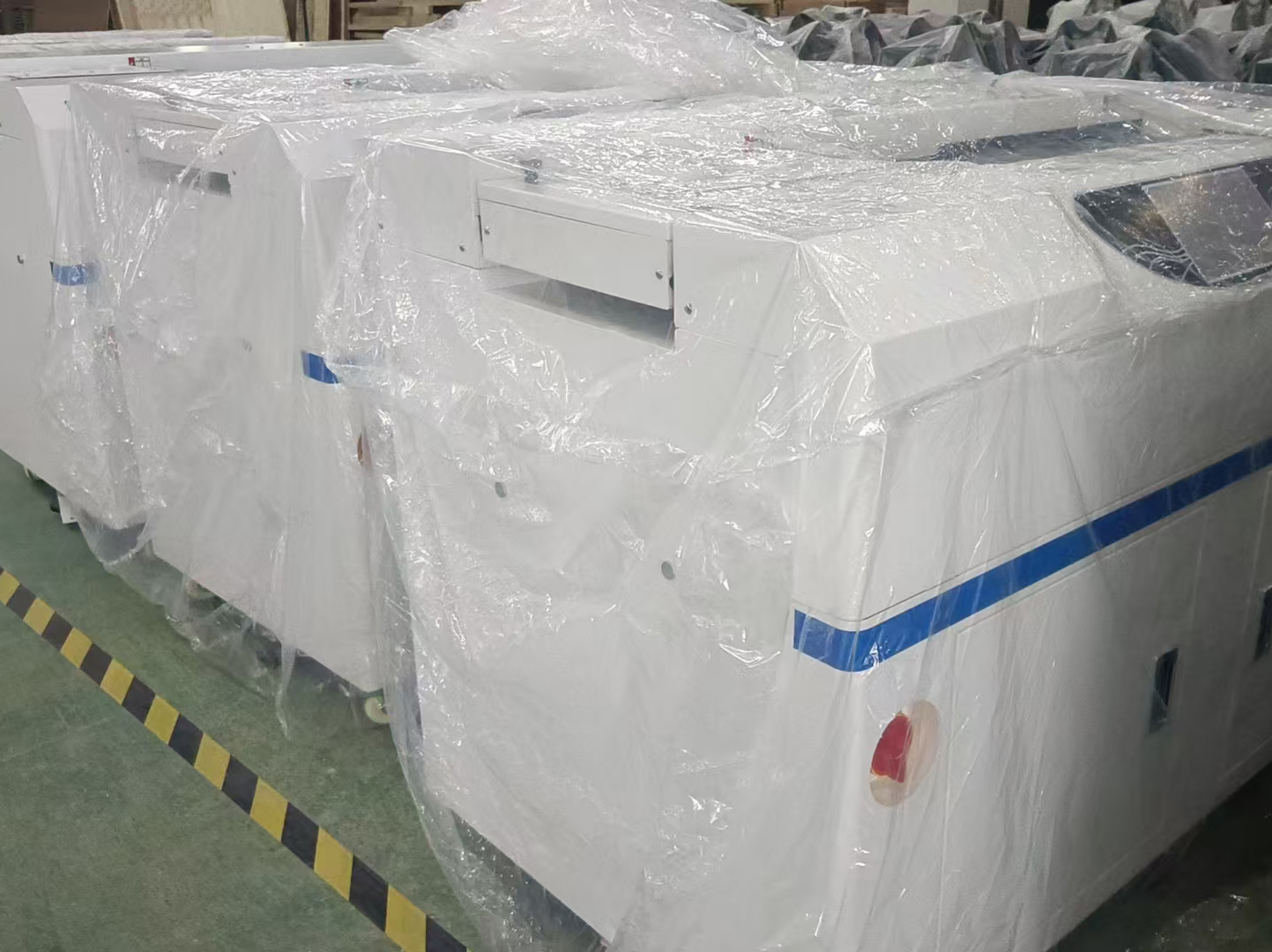

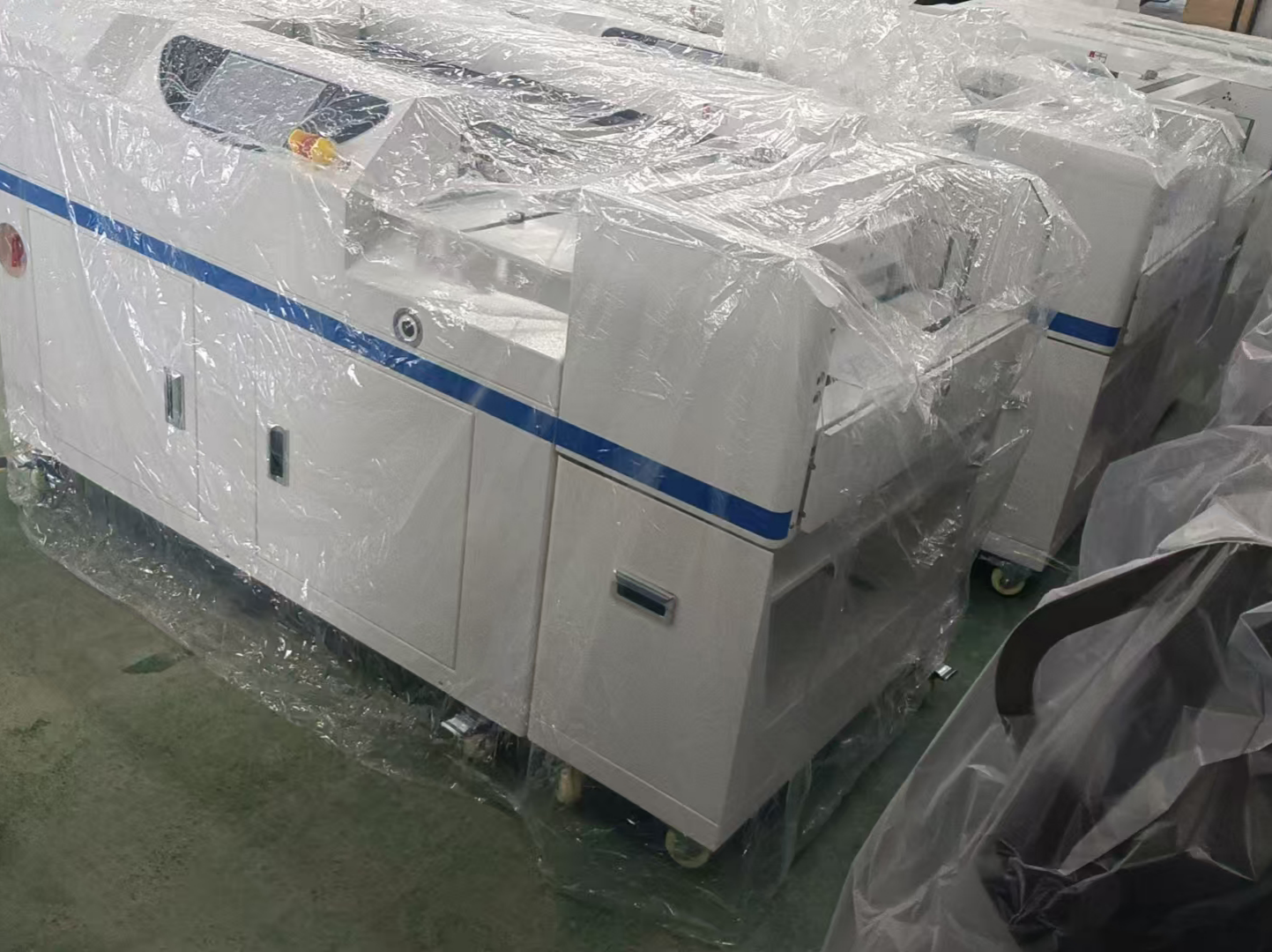

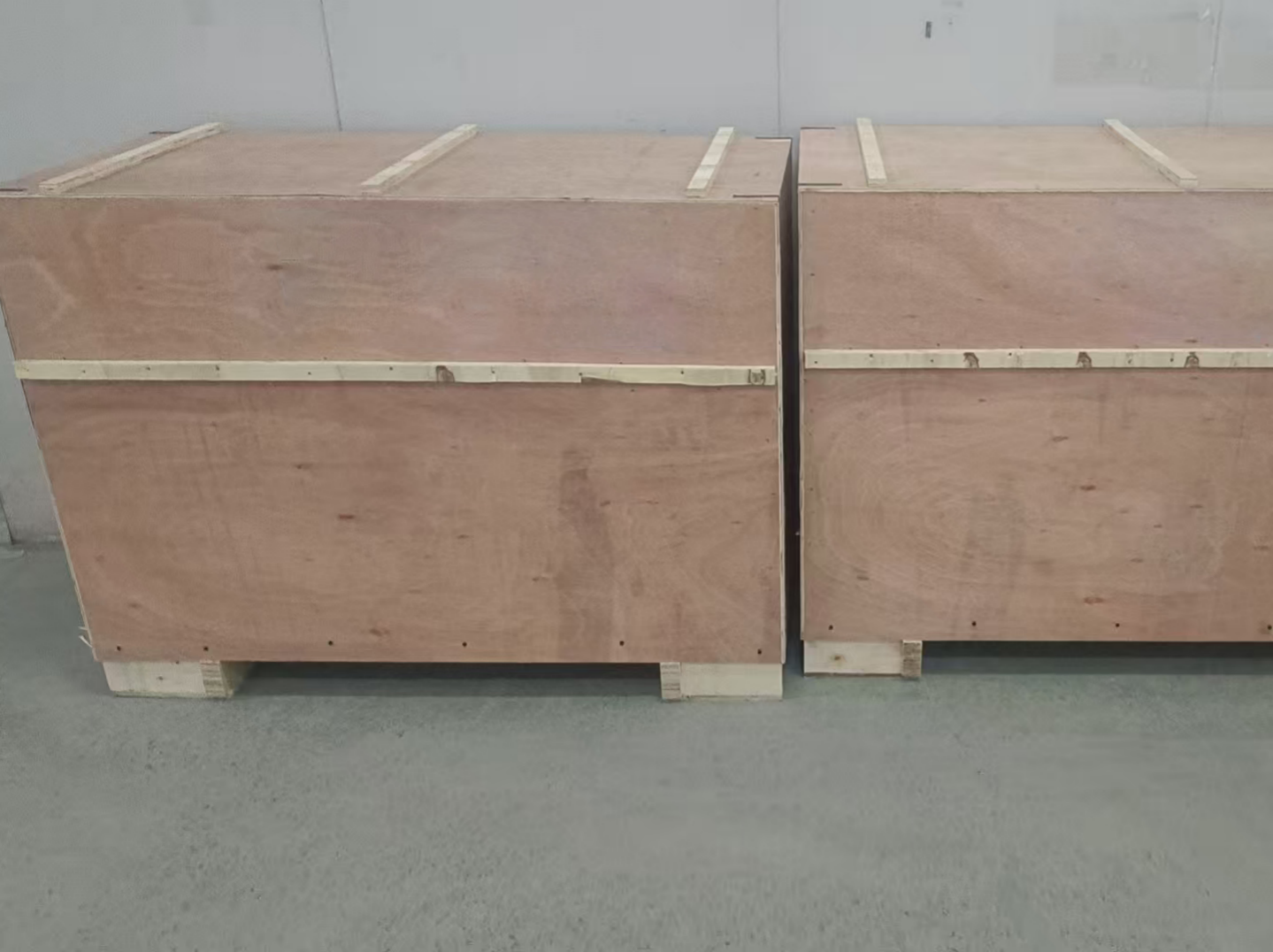

Assembly Line and Package Details

Frequently Asked Questions

What safety certification you have

CE-EMC   CE-LVD
ROHS.      UKCA
FCC.          MD.          REACH

What is the production time

Normally 15 days, if meet busy season need 30-45 days depend order volumes after order confirmed.

Service and Training

Operational Manual,
Installation manual,
Parts list,
Guide video,
Online meeting or training at site

What is the warranty time

Sunfung offer 2 years warranty time from customer get the machine for all the machines.

Can I see and test machine before buy

Sure. Sunfung have demoroom at Greece for all machines.
With 58 country dealers channel globally.  We can arrange that for you both.
