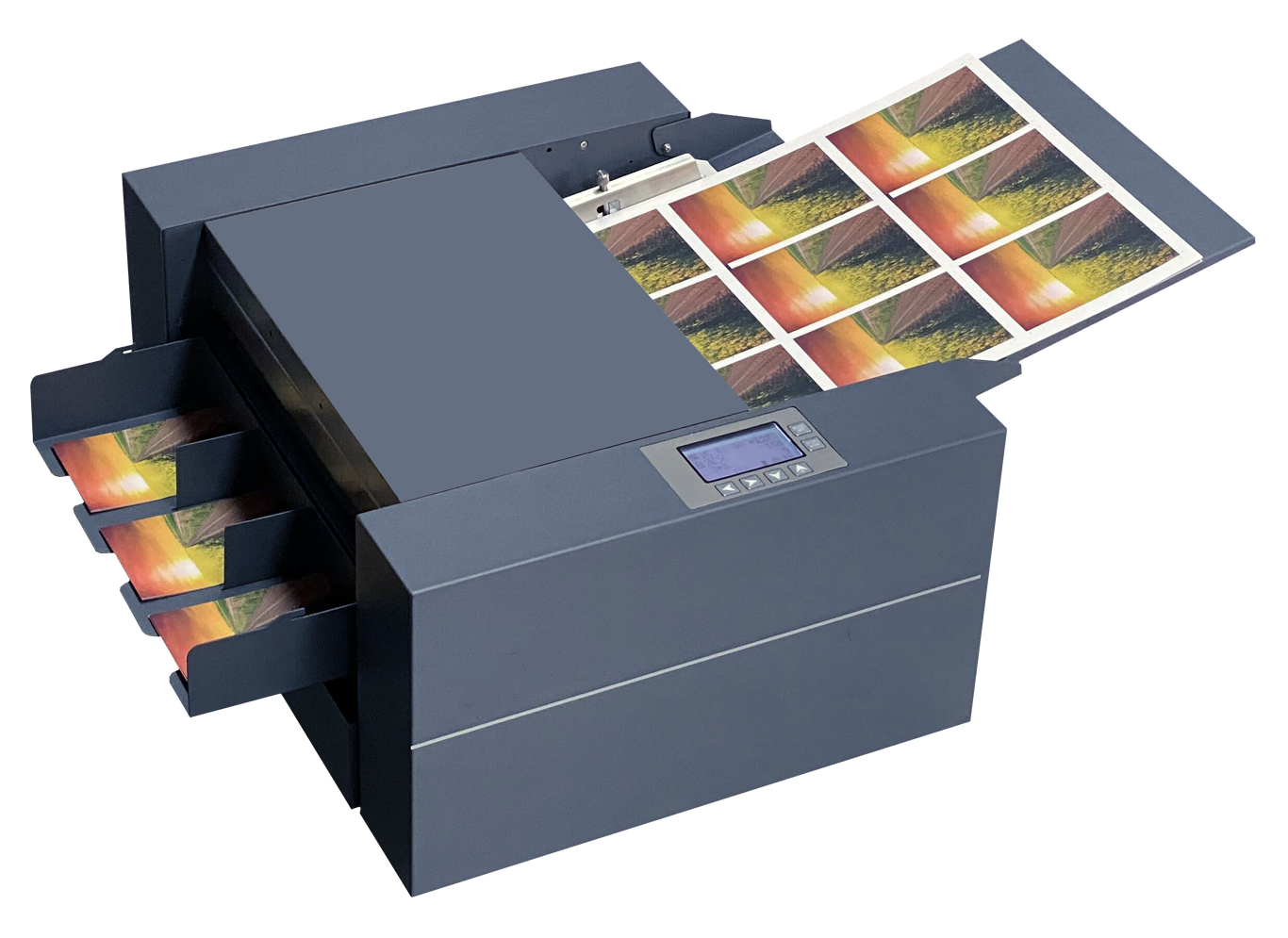

Sunfung SF-EA3/ EA4 Card Cutter Product Introduction

The Sunfung SF-EA3/ EA4 is a high-performance, large-format cutting machine, perfectly designed for small-batch production of full-bleed business cards, postcards, photographs and a wide range of paper products. Built with sturdy construction and simple, straightforward controls, this device delivers fast on-demand cutting, with a maximum working speed of 230 business cards per minute.

Fitted with an easy-to-read LCD screen, the SF-EA3/ EA4 allows operators to quickly select from six preset cutting programmes or save up to ten fully customised cutting settings to suit unique production needs. The machine comes preconfigured to work with standard A3  and SRA3 printed sheets. Its input tray can hold up to forty sheets of 200gsm paper at one time, and supports paper weights of up to 350gsm (130# cover paper). An optional wheeled cabinet with a waste bin is available for higher-volume workflows, enabling effortless movement and tidy storage.

Equipped with an automatic friction feeding system, this versatile cutter handles coated and uncoated paper, laminated sheets and thick card stock with consistent results. It features self-sharpening precision blades that deliver cutting accuracy within 0.1mm. A built-in registration mark reader is also included to further improve cutting precision for professional finishes.

The machine comes fitted with a standard 3.5” cutting cassette, capable of producing twenty-four 2” × 3.5” standard business cards in one run. Interchangeable cutting cassettes are offered as optional accessories, supporting the production of various item sizes. These include 5” × 7” cards, 3.5” × 5” postcards, 4” × 5” photos, full-bleed 8.5” × 11” brochures, 11” × 17” menus, gift tags and postal inserts.

Boasting user-friendly functions and a practical large-format design, the Sunfung SF-EA3/ EA4 guarantees precise, reliable on-demand card cutting. It brings modern production efficiency to small-batch paper processing, offering outstanding performance and excellent value for money within the industry.

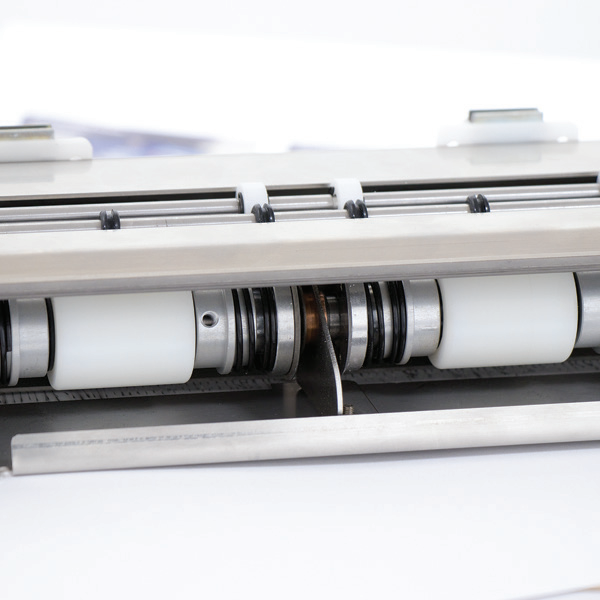

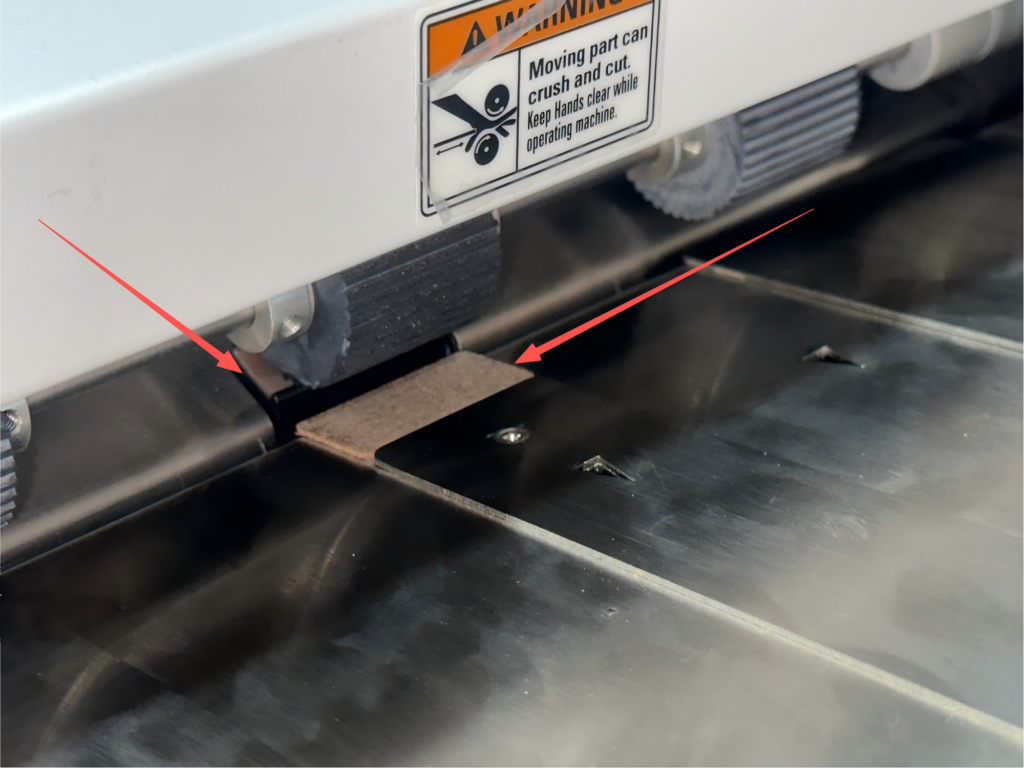

Double Friction Feed System

Automatic feeding with heavy duty cutting blades

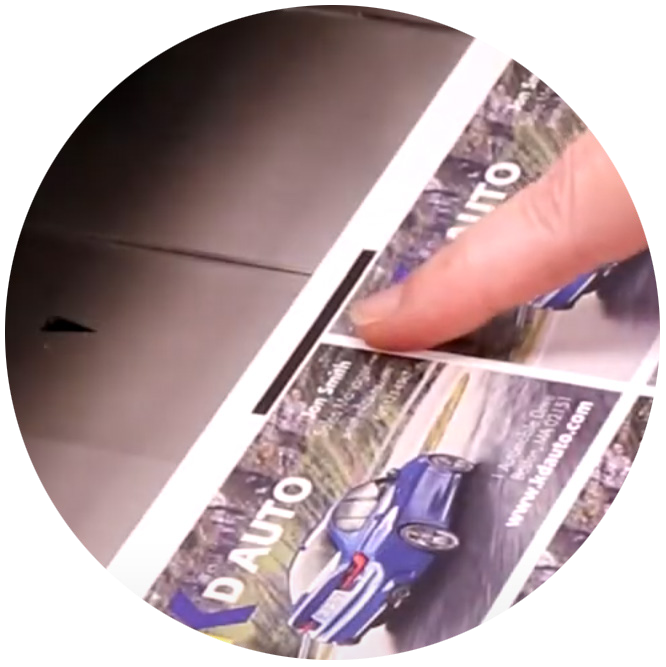

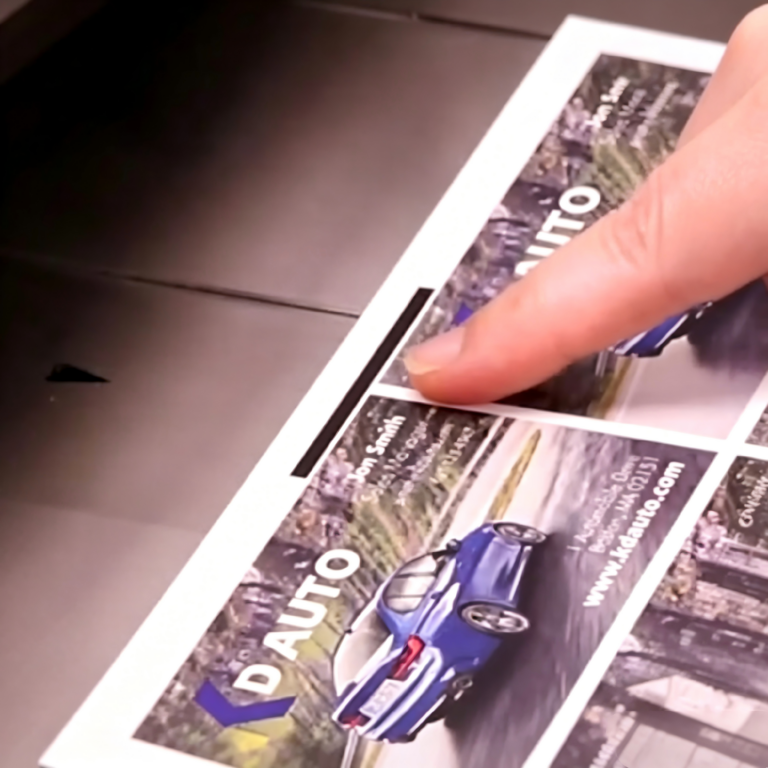

Registration Mark Reading

Users can utilize the reigistration mark for enhanced cutting accuracy

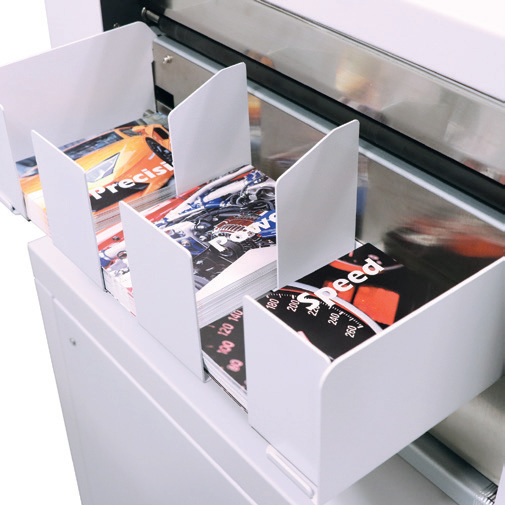

Adjustable Catch Tray

Holds finished pieces and keeps them neatly stacked

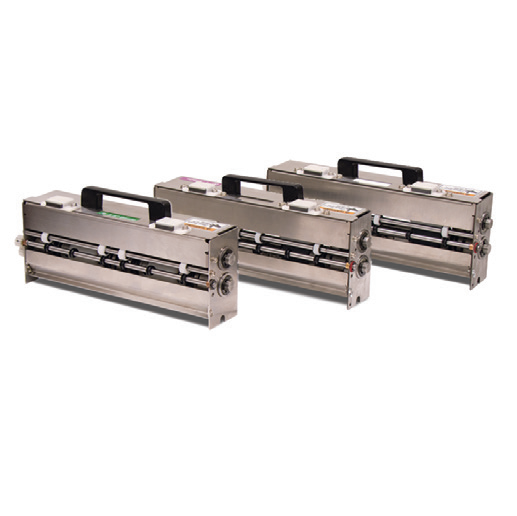

Optional Quick-Change Cassettes

Heavy duty cutting cassettes can be changed easily for different size job

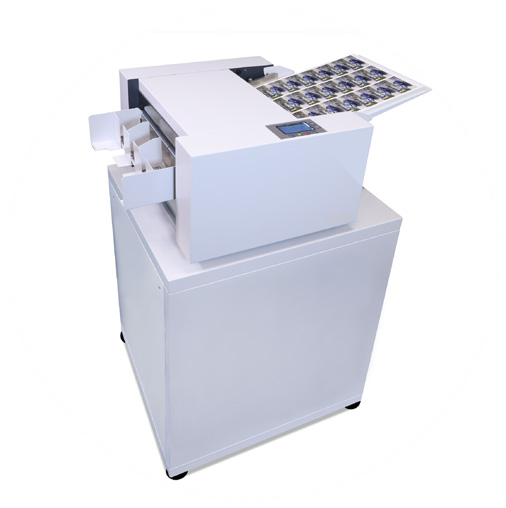

Optional Cabinet with Waste Bin

Ideal for higher volume, features casters for easy movement

Main Features

  • Easy Operation: Intuitive LCD control panel with 6 preset programmes and storage for up to 10 custom cutting jobs.

  • Durable Cutting System: Heavy duty, quick-change cutting cassette paired with a reliable double friction feed mechanism for stable continuous operation.

  • High Precision: Built-in registration mark sensor ensures accurate, perfectly aligned cutting results.

  • Wide Material Compatibility: Supports various paper stocks, handling weights up to 350gsm and accepting 12”×18” & 13”×19” sheet sizes.

  • Large Loading Capacity: Infeed tray holds up to 40 sheets of 200gsm paper for efficient batch processing.

  • Practical Design: Fully adjustable catch tray for tidy collection of finished cut pieces.

  • Safe Operation: Fitted with robust interlocking plexiglass safety cover for maximum operator protection.



Technical Parameters

ModelSF-EA4SF-EA3SF-B2
Paper thickness180 – 450gsm180 – 350gsm200 – 350gsm
Paper feed sizeA4+, A4 size, 8.5’’x11’’, 8.5″x14″SRA3, A3+, A3 size, 12”x18”, 13”x19”320x450mm – 530x750mm
Cards size(85,89,90, 95mm, Customize) x (1-600mm) or (45,50,54mm)(85,89,90, 95mm, Customize) x (1-600mm) or (45,50,54mm)(85,89,90, 95mm, Customize) x (1-600mm) or (45,50,54mm)
Paper typeCoated paper, Non-coated paper, Laminated paperCoated paper, Non-coated paper, Laminated paperCoated paper, Non-coated paper, Laminated paper
Programmable jobsUp to 20: 7 pre-programmed, 13 customUp to 20: 7 pre-programmed, 13 customUp to 20: 7 pre-programmed, 13 custom
Min cut length40mm40mm40mm
Feed volume10mm or 40pcs paper(0.25mm)10mm or 40pcs paper(0.25mm)10mm or 40pcs paper(0.25mm)
FeedingDouble roller frictionDouble roller frictionDouble roller friction
Registration mark readerYesYesYes
Cutting accuracy+/-0.05mm+/-0.05mm+/-0.05mm
Cutting speed230 cards per minute230 cards per minute300 cards per minute

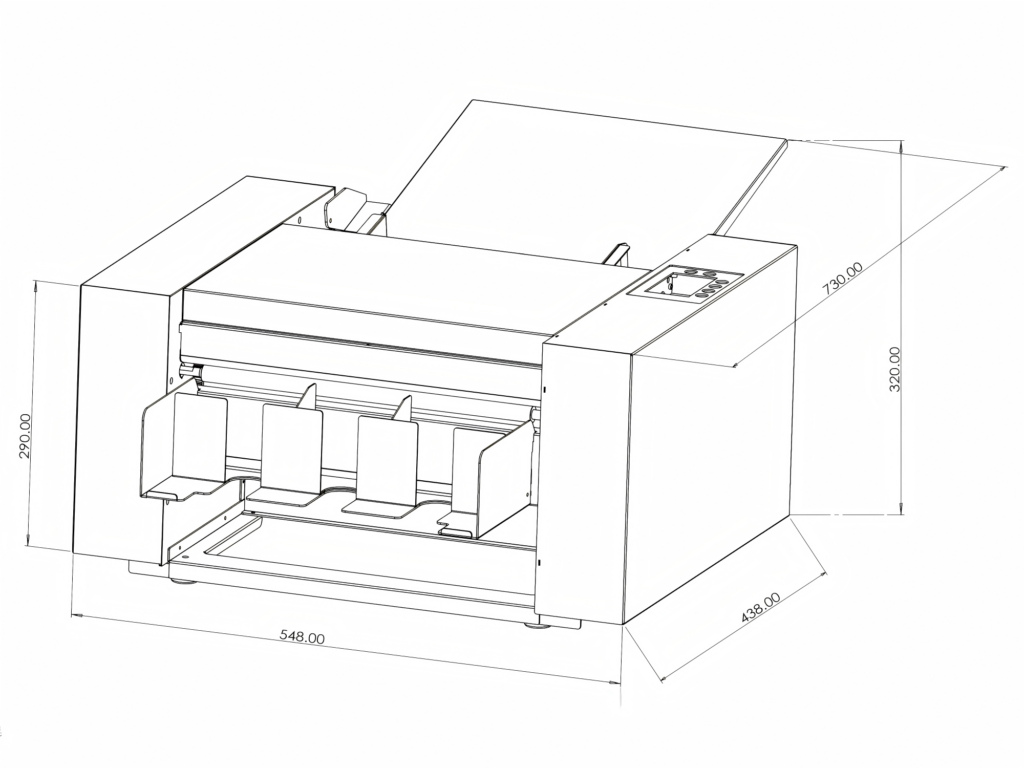

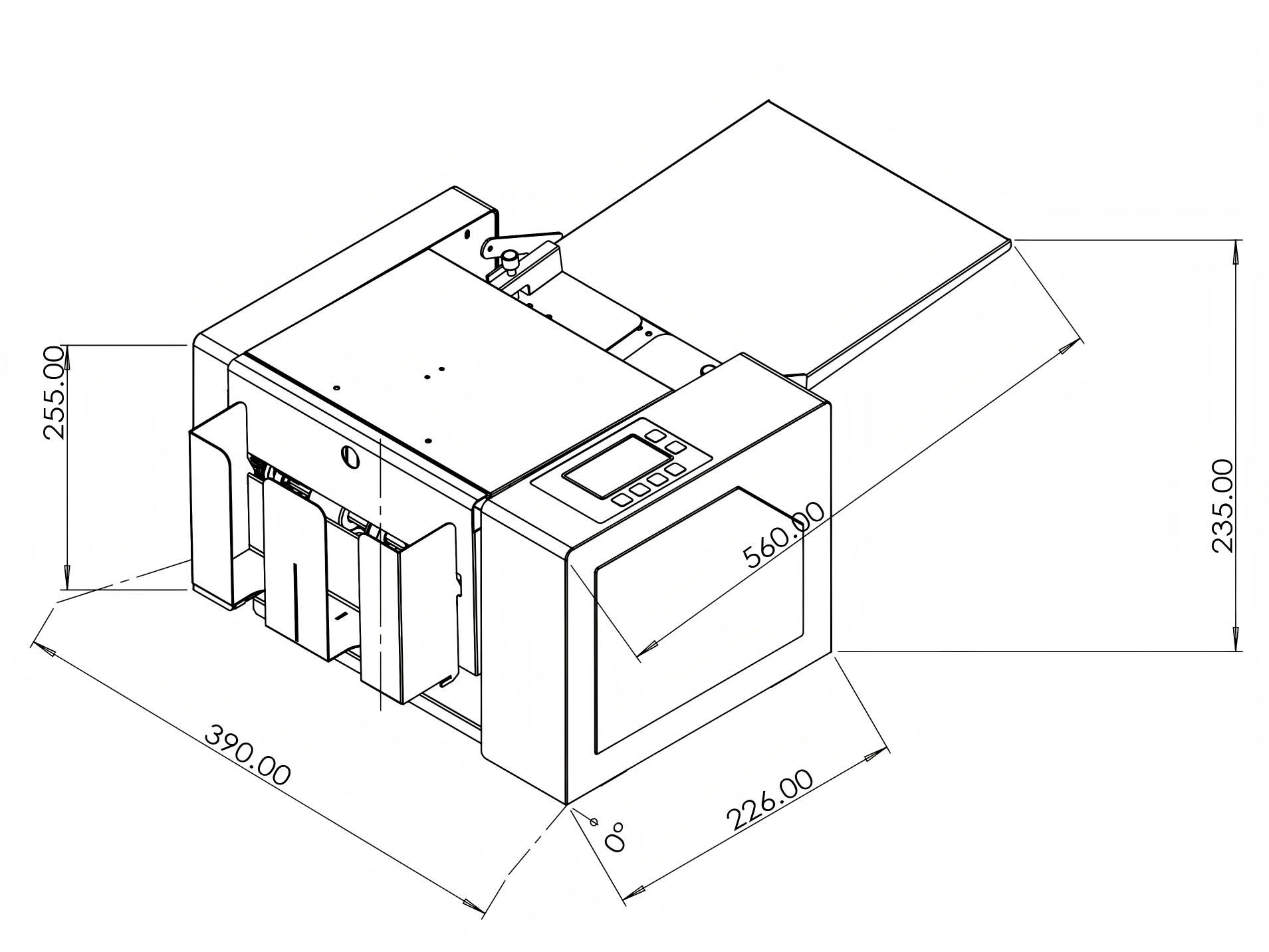

Machine dimensions460 x 540 x 260mm500 x 620 x 260mm1080 x 550 x 295mm
Weight19kg25kg60kg
Power supplyAC 90-220V , 50/60Hz, 0.5AAC 90-260V , 50/60Hz, 0.5AAC 90-260V , 50/60Hz, 0.5A

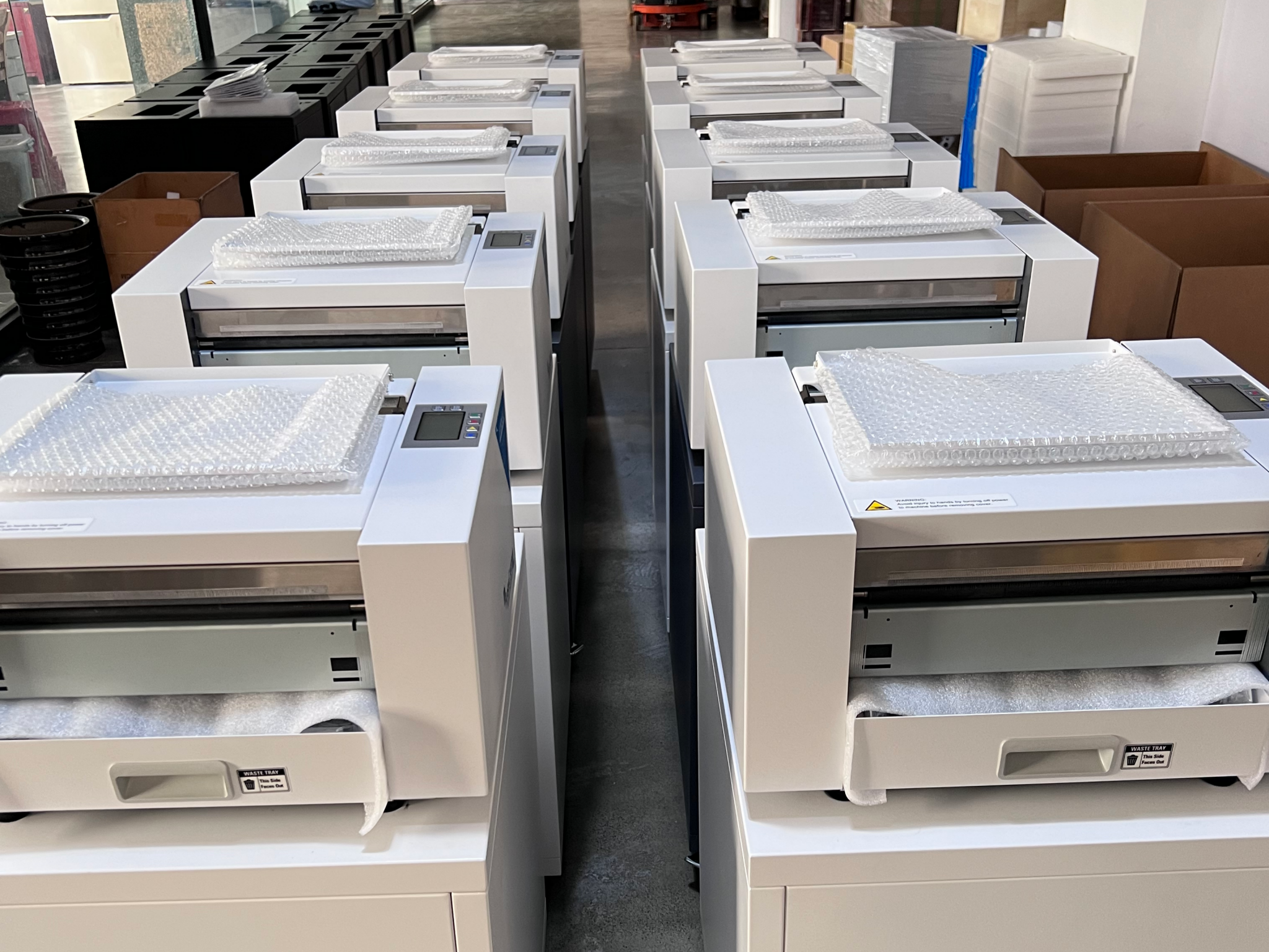

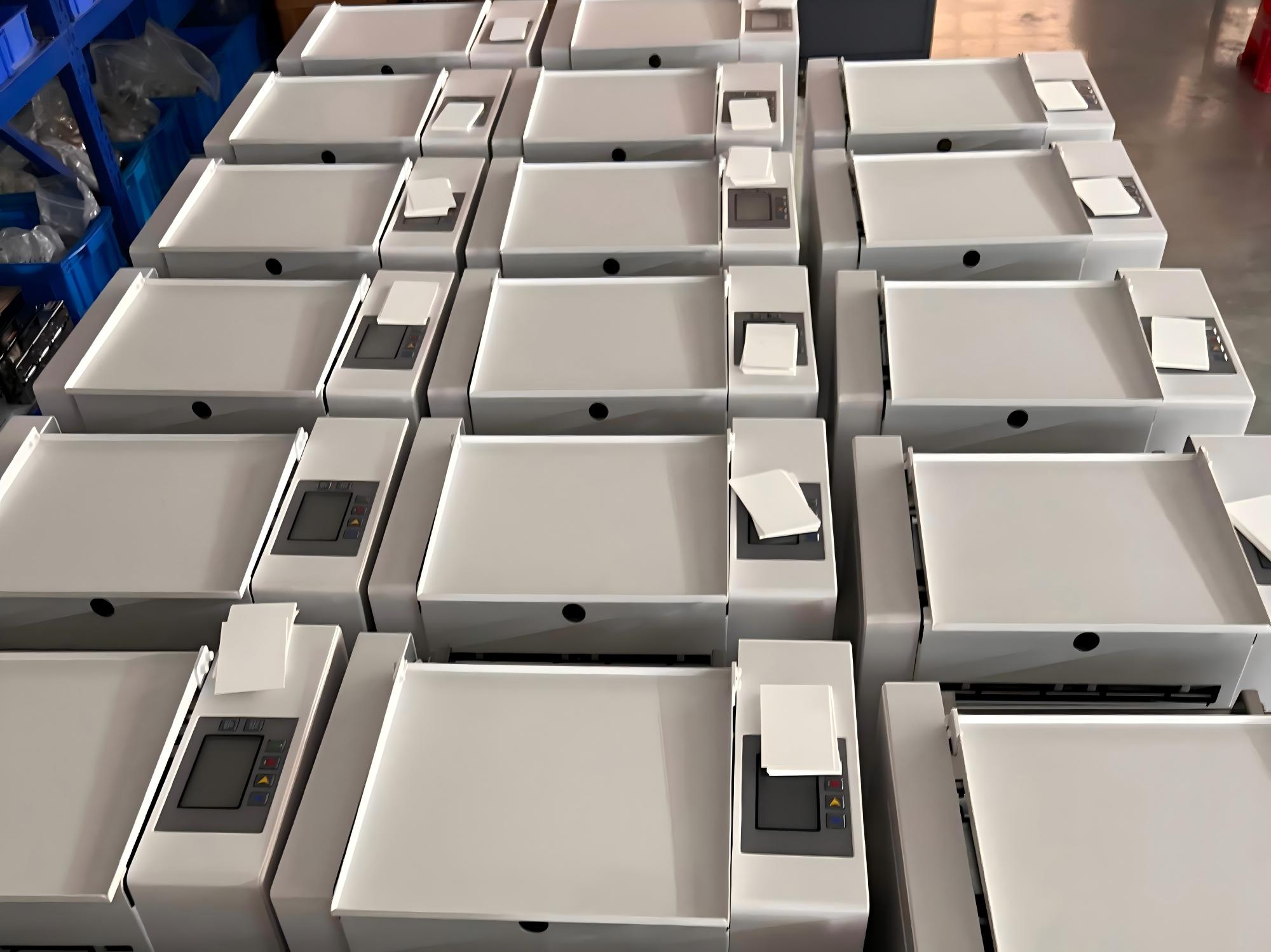

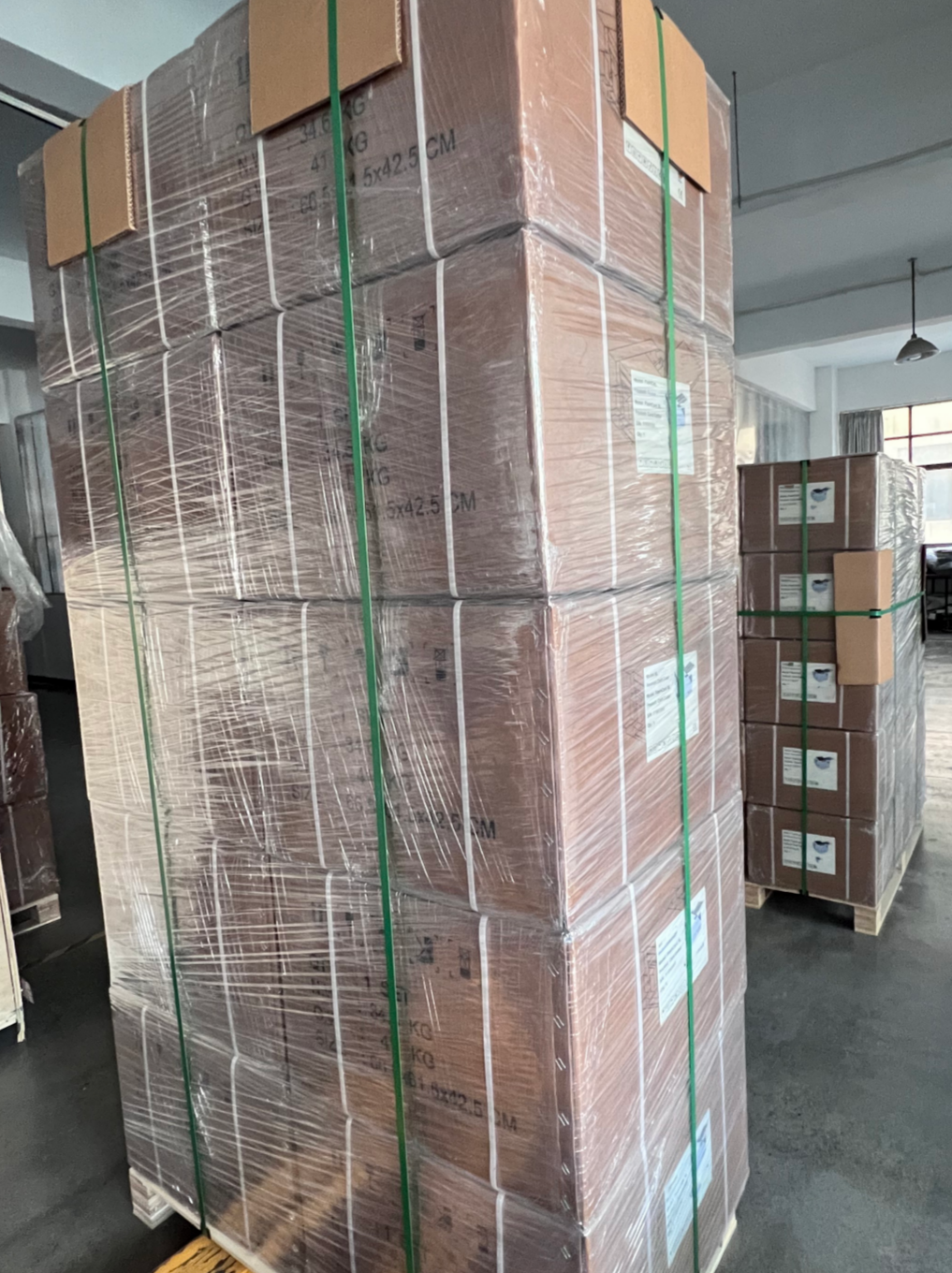

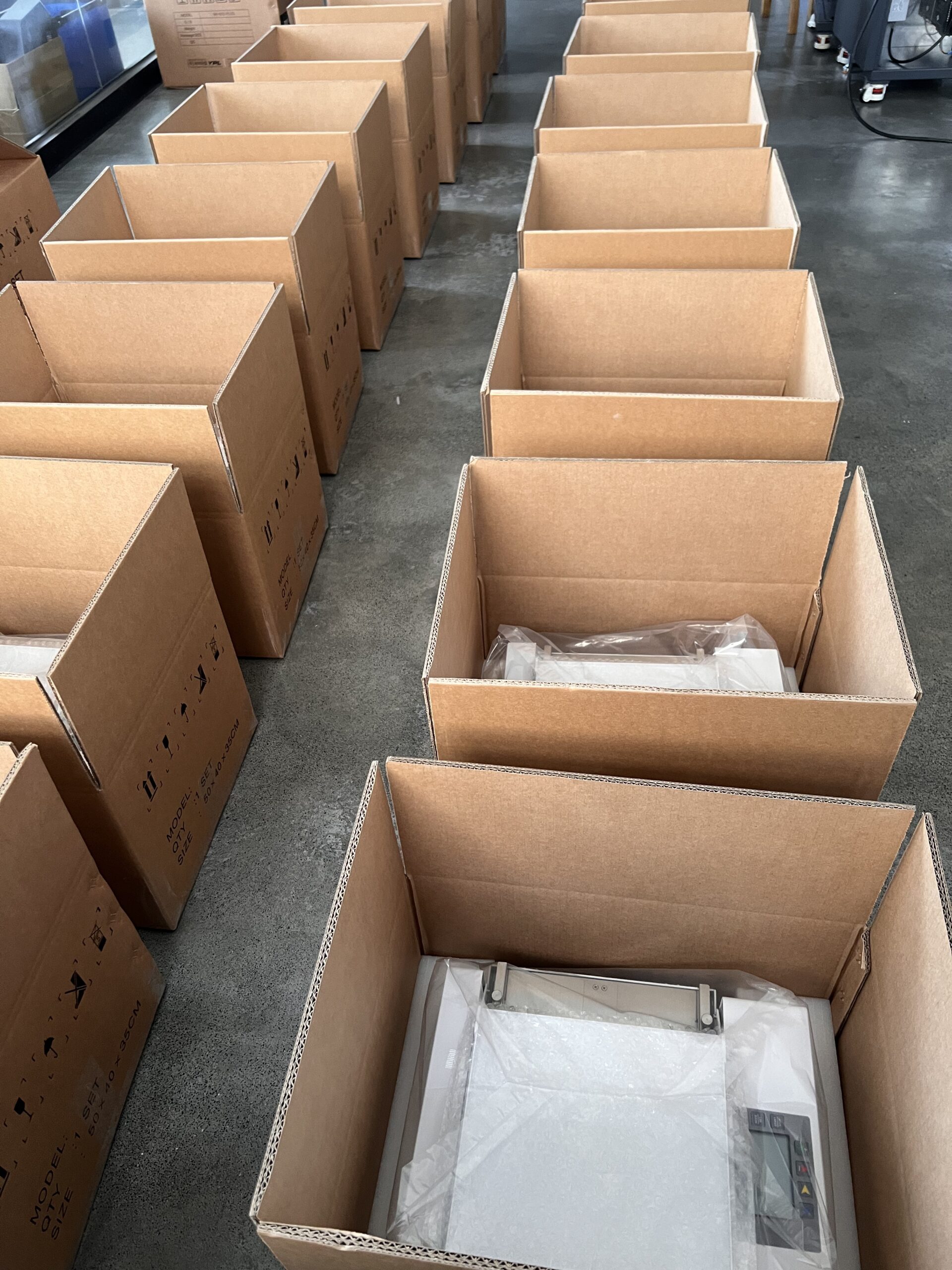

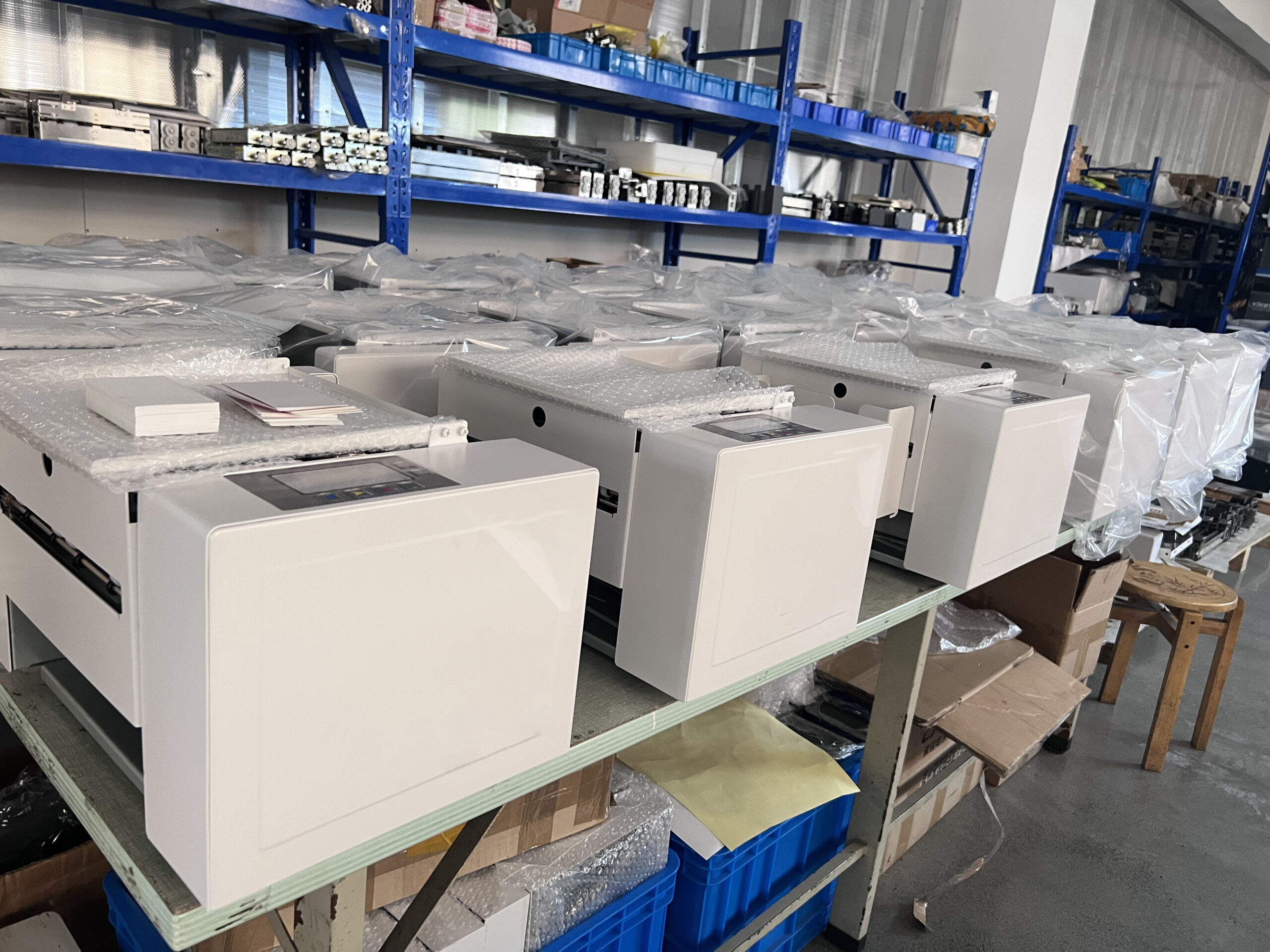

Assembly Line and Package Details

Frequently Asked Questions

What safety certification you have

CE-EMC   CE-LVD
ROHS.      UKCA
FCC.          MD.          REACH

What is the production time

Normally 15 days, if meet busy season need 30-45 days depend order volumes after order confirmed.

Service and Training

Operational Manual,
Installation manual,
Parts list,
Guide video,
Online meeting or training at site

What is the warranty time

Sunfung offer 2 years warranty time from customer get the machine for all the machines.

Can I see and test machine before buy

Sure. Sunfung have demoroom at Greece for all machines.
With 58 country dealers channel globally.  We can arrange that for you both.
