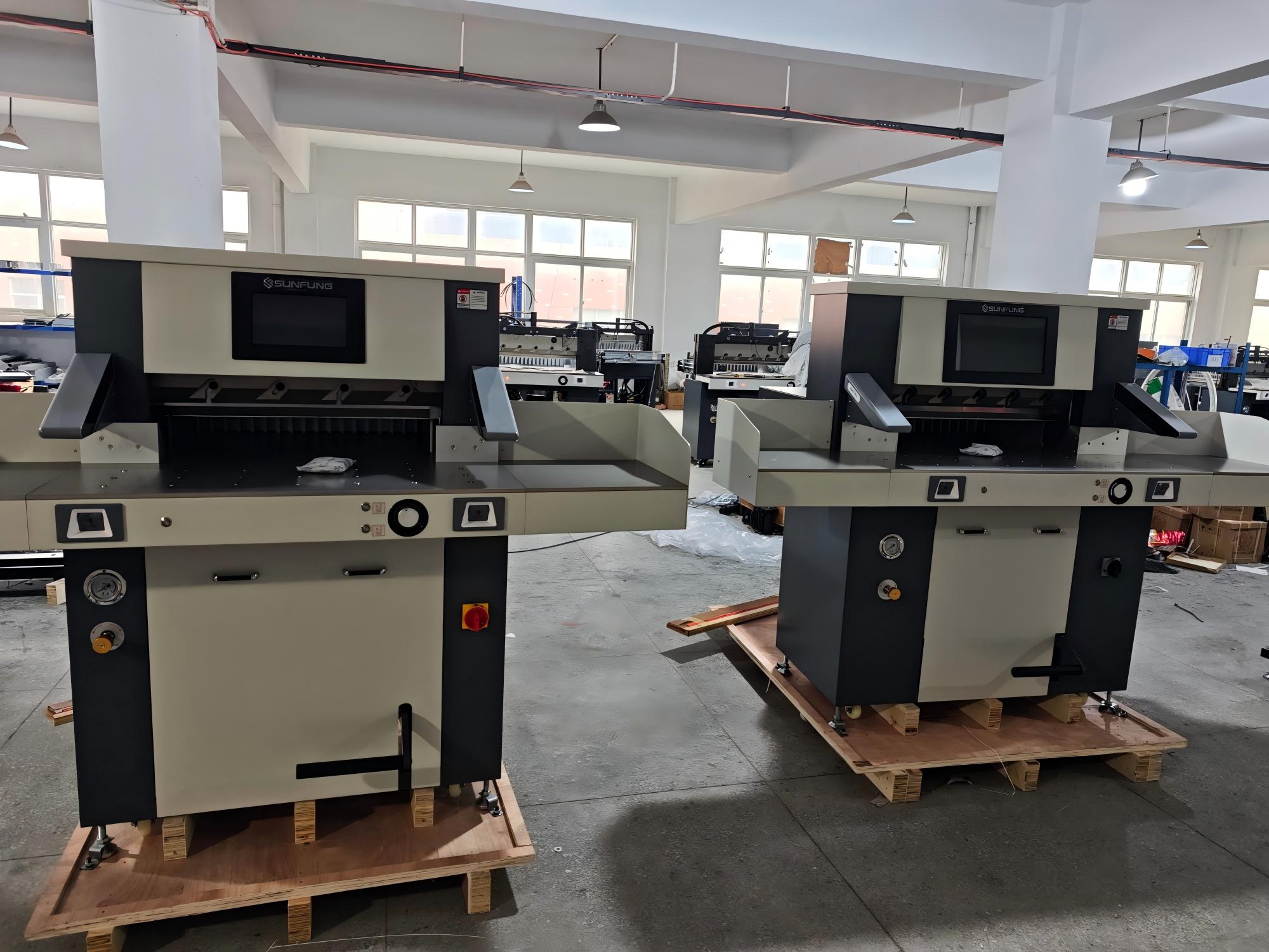

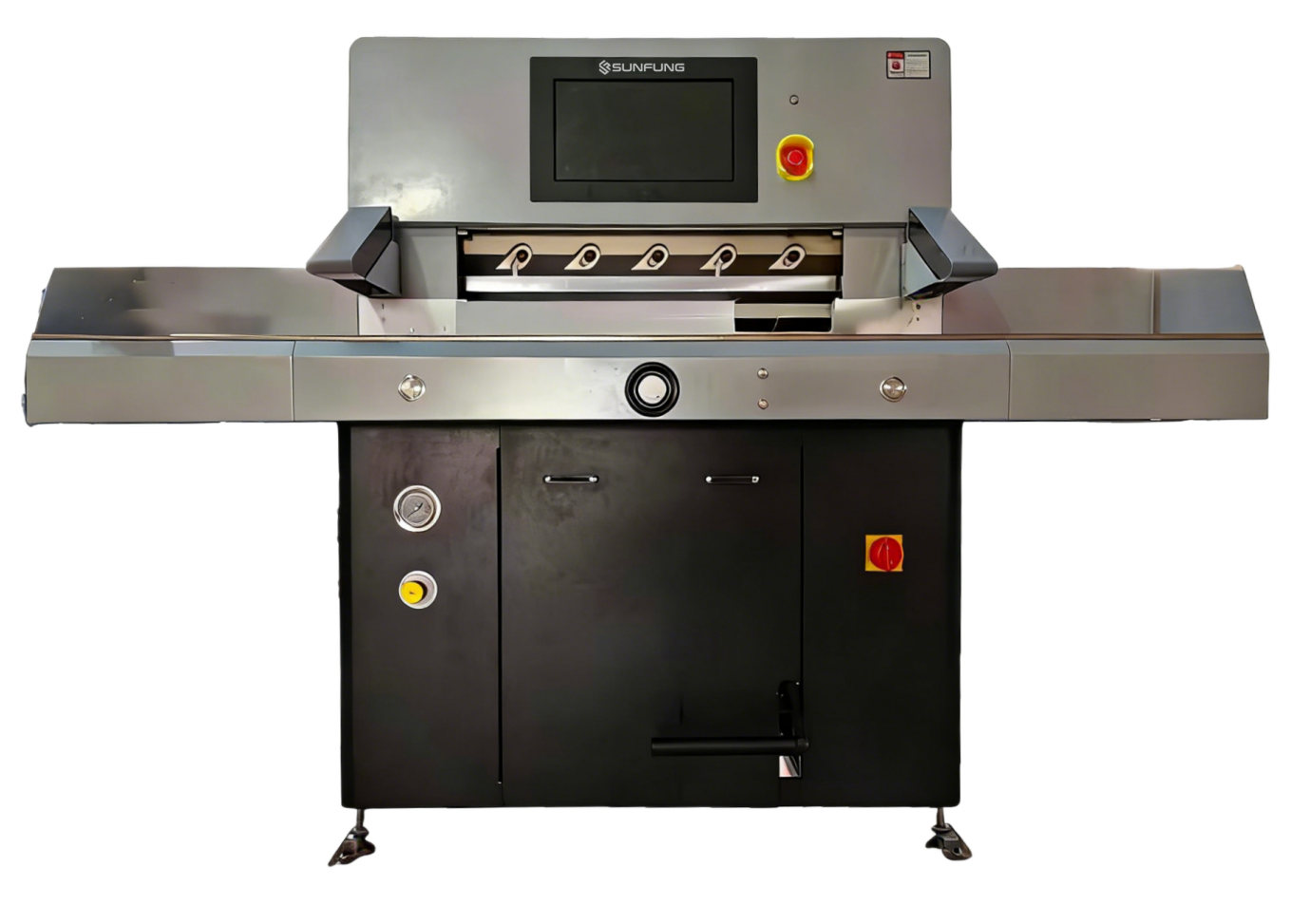

Heavy duty Cutter

SF-HD heavy duty paper cutters, three models. 300gsm paper full load keep working 24 hours. They are the most powerful to precisely cut large stacks of paper stock. Our SF-HD series of hydraulic and programmable paper cutter is the perfect cutter for print finishing and on-demand use. SF-HD uses 380V three-phase electricity. SF-HD paper cutters are available in fully-automatic models. Cutting widths are available up to 800 mm. If you are looking for a high quality, reliable hydraulic and programmable paper cutter; you have come to the right place. Whether your market is quick-print, copy shop, in-plant, offset, or on-demand, we have the ideal cutter for your needs. We design the paper cutting machines so that they are user friendly and easy to operate, thanks to features such as LED display touchscreen with full status, and side buttons for easy two-handed operation. Equipped with state of the art security features including CE standard safety beam guards, our cutters are designed to be safe.

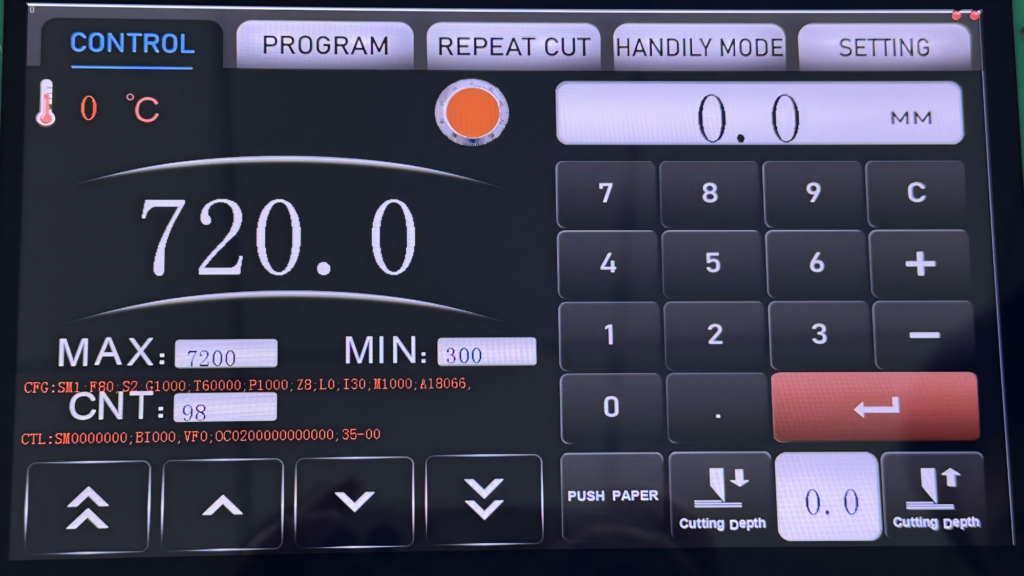

10-15.6 inch touch screen

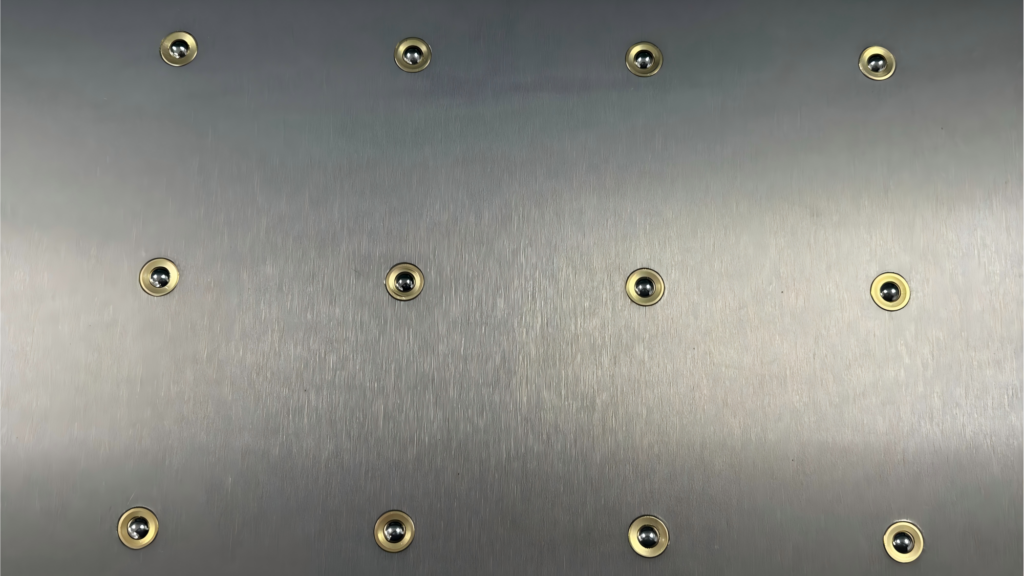

Air Table

Air table by aviation alumimum sheet with hard oxidation treatment.

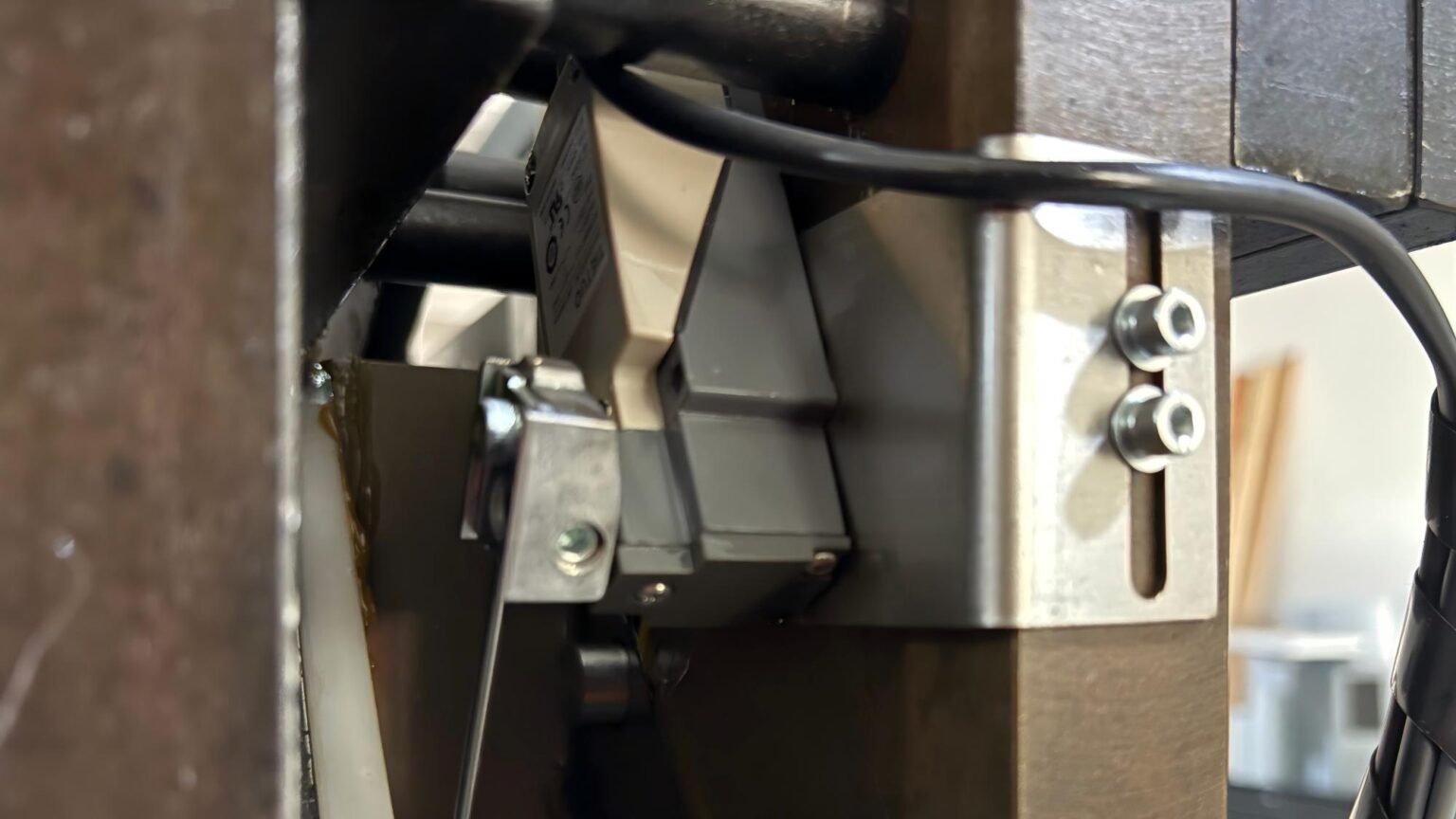

Safety blade lock

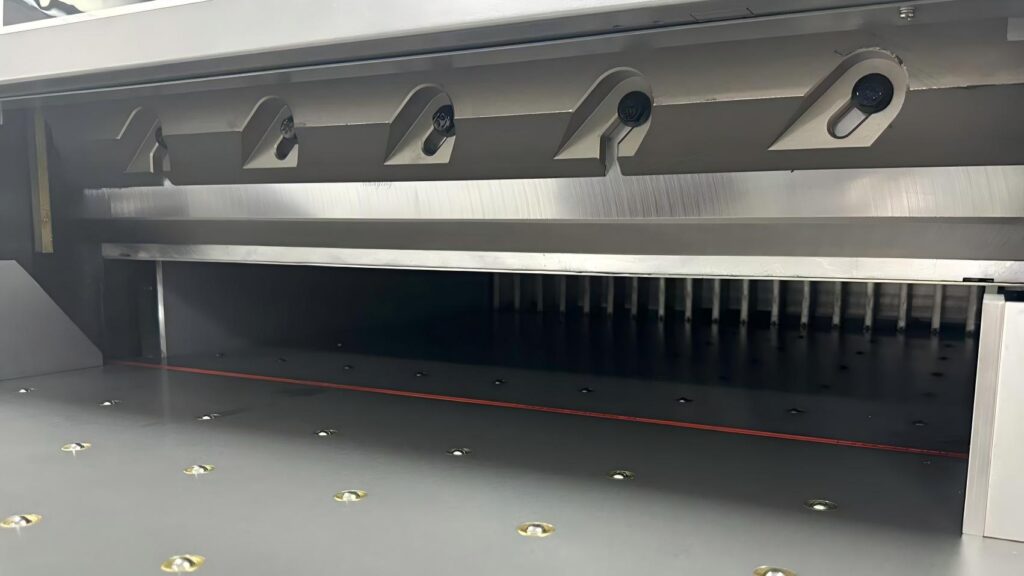

Heavy duty clamp and blade

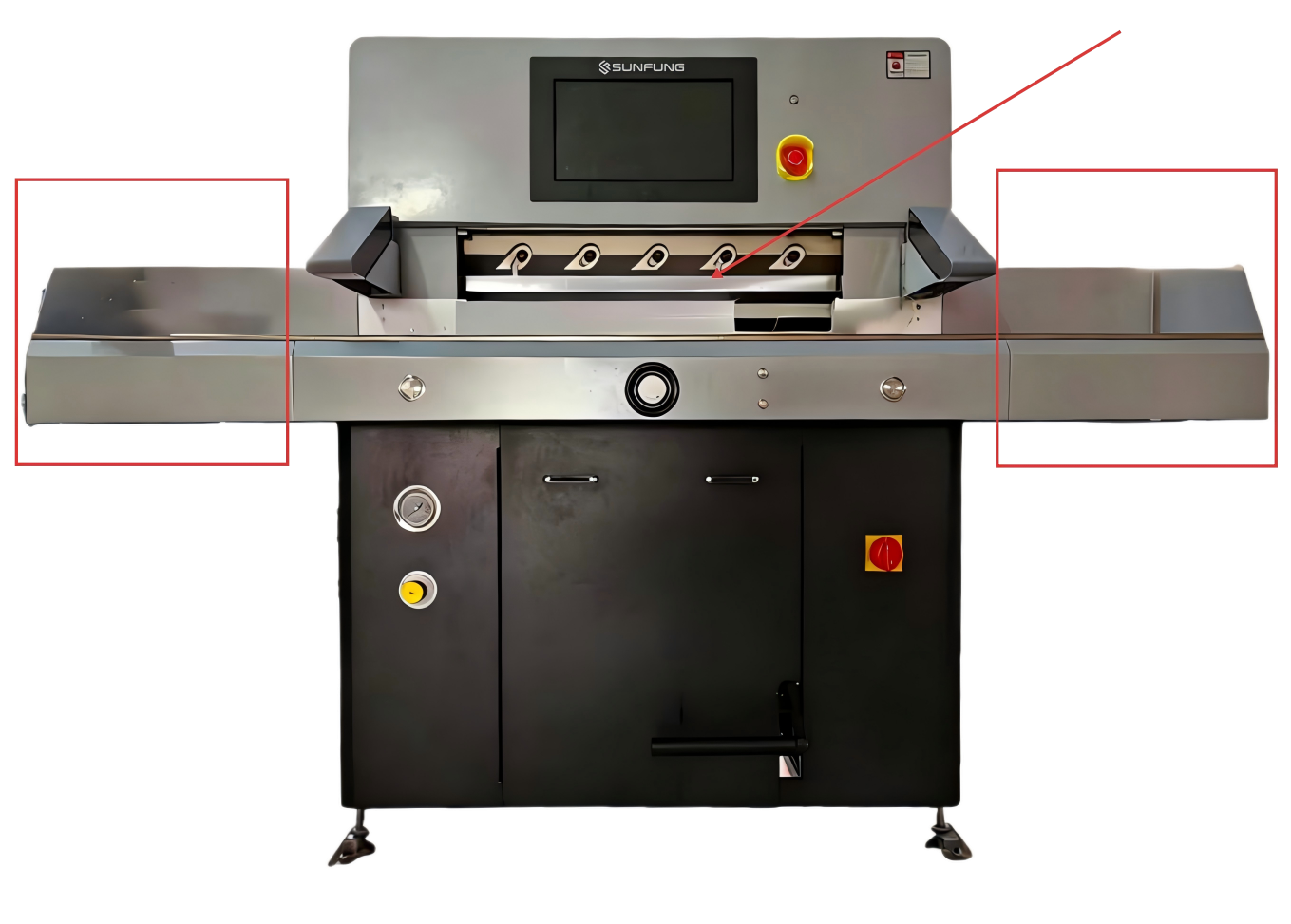

You get what you see, with side table and additional blade included as standard

Main Features

Aviation aluminum sheet table with hard oxidation treatment
PC Board with safety relay and transducer control
Clamp pressure from 2,000—20,000 N adjustable
100 programs with 30 steps each
15.6 inch touchscreen full-color display
Heavy-duty complete strong design
Industrial infrared safety guard
AC Servo Motor
Double linear guide rail back gauge control
Hydraulic oil temperature check and cut depth compensation
Air table
Omron sensors
Efficient foot pedal

Technical Parameters

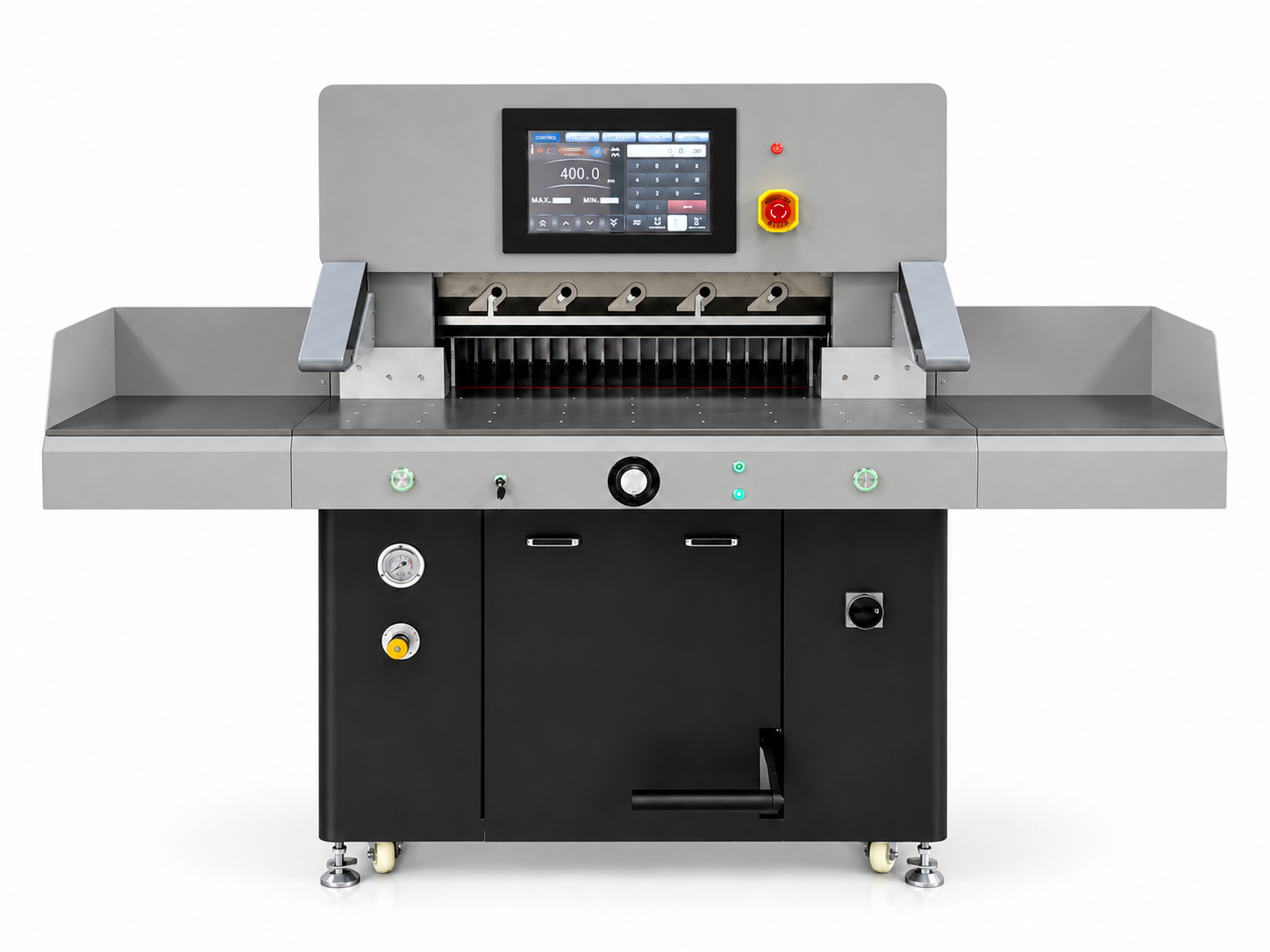

Model	SF-H52P	SF-H67P	SF-H72P	SF-H82P
Max cut width	520 mm	670 mm	720 mm	820 mm
Min cut width	30 mm	30 mm	30 mm	30 mm
Max cut height	80mm	80 mm	100mm	100 mm
Cut accuracy	0.2 mm	0.2 mm	0.2 mm	0.2 mm
Air table	Yes	Yes	Yes	Yes
Paper clamp	Hydraulic + Foot pedal	Hydraulic + Foot pedal	Hydraulic + Foot pedal	Hydraulic + Foot pedal
Backgauge control	Programmable	Programmable	Programmable	Programmable
Display	10.1 inch touch screen	10.1 inch touch screen	15.6 inch touch screen	15.6 inch touch screen
Safety mechanism	Blade lock + CE safety beam guard	Blade lock + CE safety beam guard	Blade lock + CE safety beam guard	Blade lock + CE safety beam guard
Power supply	220V, 50-60Hz	220V, 50-60Hz	380V, three phase, 50-60Hz	380V, three phase, 50-60Hz
Dimensions	W 1250 x D 1010 x H 1390 mm	W 1400 x D 1035 x H 1460 mm	W 1500 x D 1055 x H 1460 mm	W 1650 x D 1085 x H 1460 mm
Net weight	450 Kg	550 Kg	750 Kg	820 Kg
Gross weight	500 Kg	620 Kg	820 Kg	935 Kg

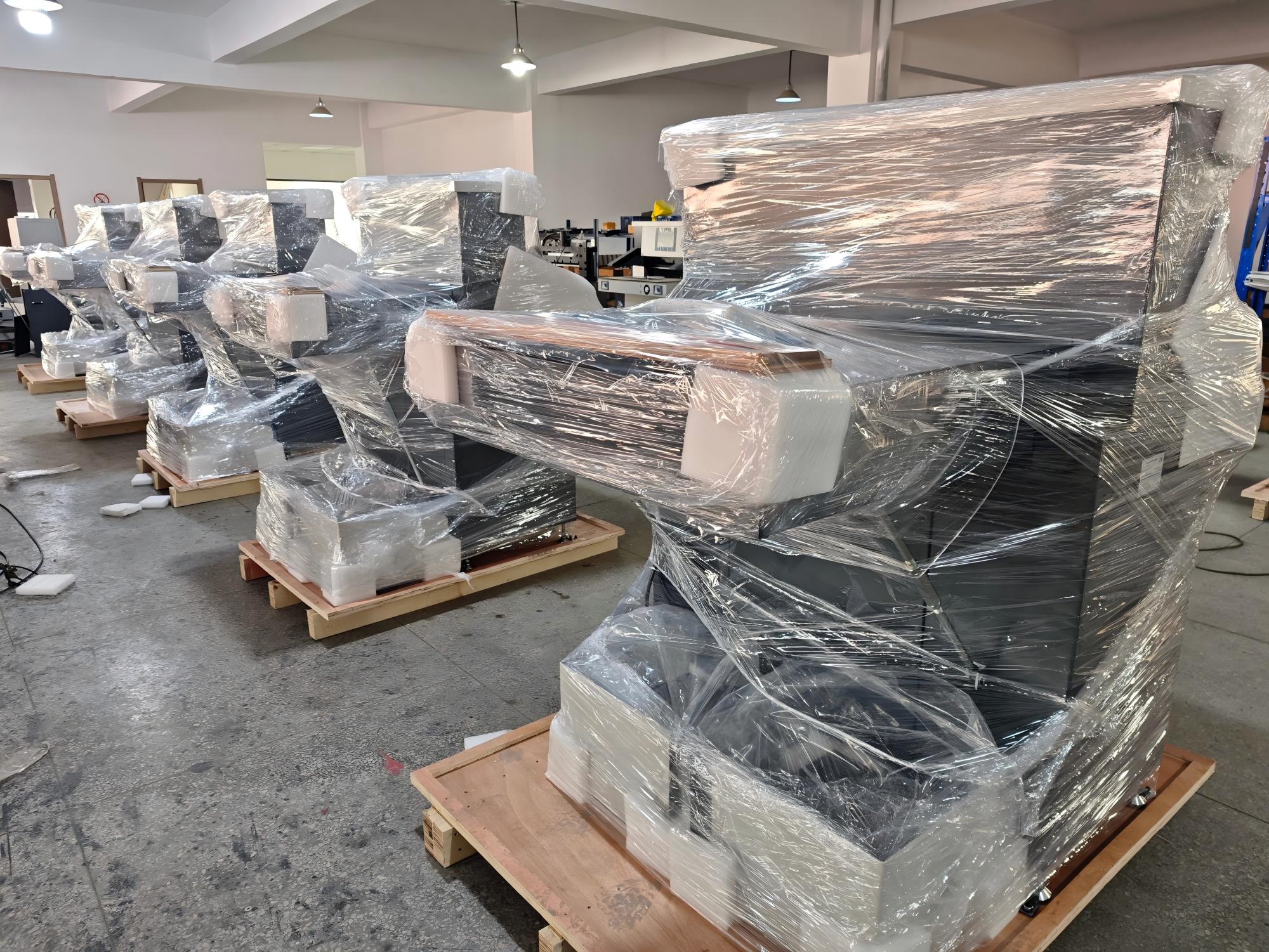

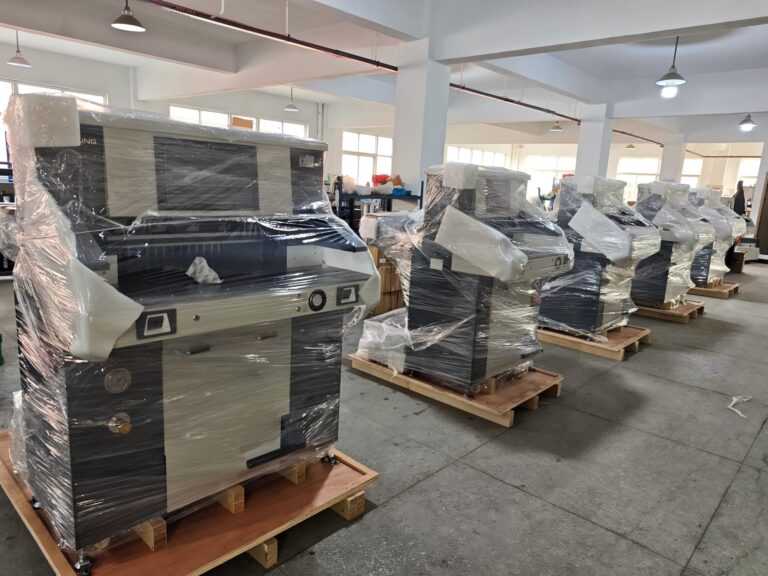

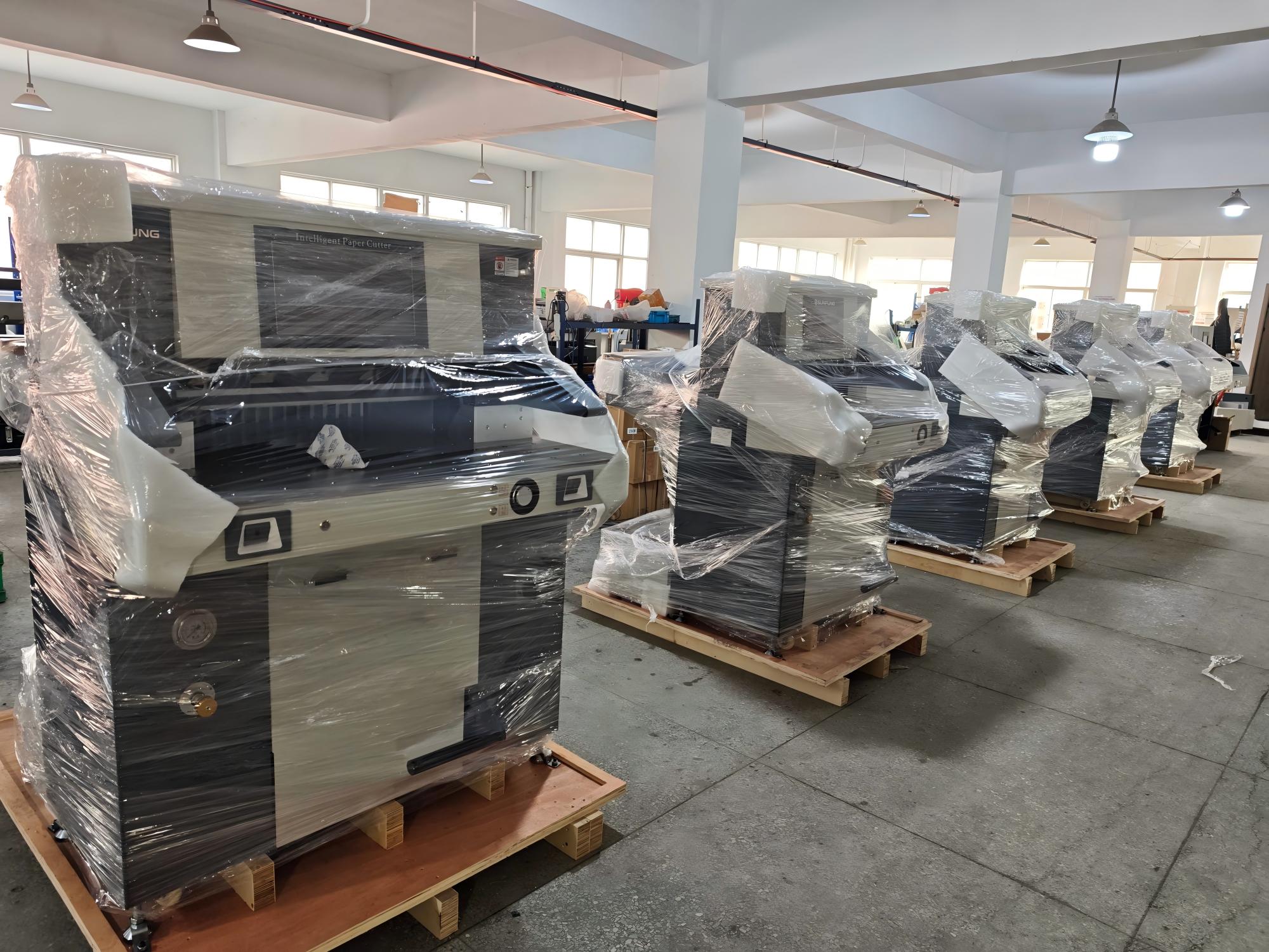

Assembly Line and Package Details

Applications

Frequently Asked Questions

What safety certification you have

CE-EMC CE-LVD
ROHS. UKCA
FCC. MD. REACH

What is the production time

Normally 15 days, if meet busy season need 30-45 days depend order volumes after order confirmed.

Service and Training

Operational Manual,
Installation manual,
Parts list,
Guide video,
Online meeting or training at site

What is the warranty time

Sunfung offer 2 years warranty time from customer get the machine for all the machines.

Can I see and test machine before buy

Sure. Sunfung have demoroom at Greece for all machines.
With 58 country dealers channel globally. We can arrange that for you both.
