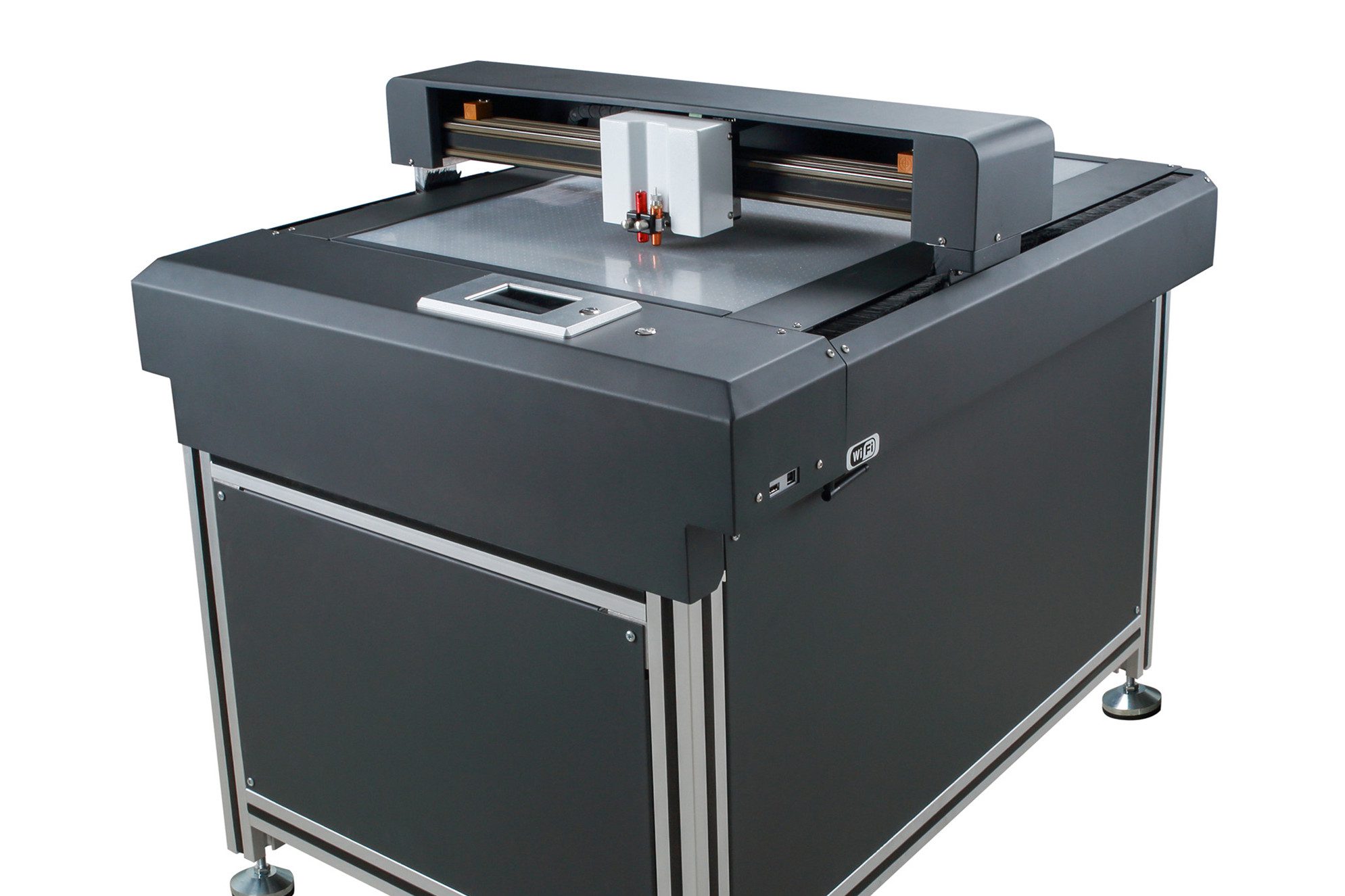

The Sunfung flatbed cutting plotter is a flat plotter with a suction pump inside the machine. The maximum cutting area of 60 x 90 mm is ideal for sheet cutting and packaging box.
Thanks to its mechanics it cuts thicknesses up to a maximum of 1000 mm. Equipped with 2 cutting heads, it handles blades, creasers and pens. Possibility of cutting, creasing, cutting or cutting and creasing at the same time. The new functions for cutting and creasing allow the plotter to meet the needs of the paper industry. The precise pressure control allows to perform through-cut or half-cut on different types of materials: vinyl films, paper, cards, fabric, etc.
Supplied for loading rolls up to 60 mm wide. Thanks to the large work surface it is possible to place more sheets on the work area and read the crosses automatically. With the creasing tool, the cardboard can be folded, automatically managing the creasing passes according to the type of material. Thanks to the two independently controlled cutting heads, 2 instruments can be used simultaneously with maximum pressure. The LCD touch screen allows you to work very easily directly on the plotter. It allows you to: perform cutting tests, find the cutting position, re-send cuts several times, correct X and Y margins, load cutting files directly from USB and start the suction pump. The SignMaster software allows you to manage cuts directly from your computer with the ability to save to USB and manage cutting directly from the plotter in a simple and intuitive way without a computer connection. Main Software functions: job size, preview window, multi-copy, nesting of cuts, cutting conditions (tool, pressure, speed, offset), cut by level / color.
The complete software that brings advanced vector functions to the desktop for all users even if they are not equipped with specific programs, giving the possibility of importing various vector file extensions such as PDF,  AI, all bitmap, etc

General Features:

• High-resolution camera for accurate detection of registration marks on both colored and transparent materials.
• Variable material available like high reflective material, transparent materials, PVC, magnet material, etc
• SignMaster software support Ai 8.0, PDF, all bitmap file format
• Perforation cut, Kiss cut, Die-cut, Creasing
• 50-2000g adjustable downforce
• Windows OS compatibility
• Make packaging boxes, tags, hobbies & crafts, labels, etc
• 2 years warranty

Click on the cataloged products to know more about the features before you make the purchase. For more information, fill out the Price Inquiry form down this page to get a FREE estimate about any of the automatic paper folders.
